Dial pressure gauge PT124Y-620
threadedBourdon tubeprocess

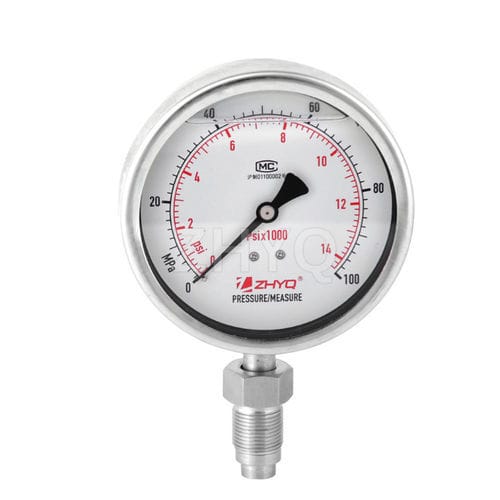

Dial pressure gauge - PT124Y-620 - Shanghai Zhaohui Pressure Apparatus Co.,Ltd.(ZHYQ) - threaded / Bourdon tube / process
Dial pressure gauge - PT124Y-620 - Shanghai Zhaohui Pressure Apparatus Co.,Ltd.(ZHYQ) - threaded / Bourdon tube / process
Dial pressure gauge - PT124Y-620 - Shanghai Zhaohui Pressure Apparatus Co.,Ltd.(ZHYQ) - threaded / Bourdon tube / process - image - 2
Dial pressure gauge - PT124Y-620 - Shanghai Zhaohui Pressure Apparatus Co.,Ltd.(ZHYQ) - threaded / Bourdon tube / process - image - 3
Dial pressure gauge - PT124Y-620 - Shanghai Zhaohui Pressure Apparatus Co.,Ltd.(ZHYQ) - threaded / Bourdon tube / process - image - 4
Add to favorites
Compare this product

Characteristics

Display
dial
Mounting
threaded
Technology
Bourdon tube
Applications
process, laboratory, for the food industry, for pharmaceutical applications
Other characteristics
glycerin-filled, OEM, high-pressure, with diaphragm seal, double
Pressure

Min.: 0 bar
(0 psi)

Max.: 1,500 bar
(21,755.66 psi)

Precision

1.6 %

Dial diameter

100 mm
(3.9 in)

Process temperature

120 °C
(248 °F)

Description

The diaphragm pressure gauge, adopts imported bourdon tube, double scale display, movable threaded design. Features Mechanical design no power supply Easy to install Good shock-proof and anti-corrosion High reliability and good repeatability Application It is suitable for the process pressure measuring of much more machineries, such as homogenizer machine, mulser, Crusher, Other food machinery and so on. Basic specification Configuration - Bourdon tube Over Pressure - 1.5×FS Process Connection - M20×1.5, M18×1.5, G3/4（Optional）
