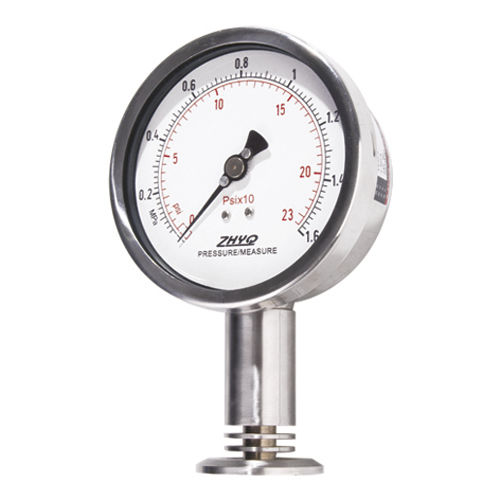

Dial pressure gauge PT124Y-623
diaphragmprocessfor the food industry

Dial pressure gauge - PT124Y-623 - Shanghai Zhaohui Pressure Apparatus Co.,Ltd.(ZHYQ) - diaphragm / process / for the food industry
Dial pressure gauge - PT124Y-623 - Shanghai Zhaohui Pressure Apparatus Co.,Ltd.(ZHYQ) - diaphragm / process / for the food industry
Dial pressure gauge - PT124Y-623 - Shanghai Zhaohui Pressure Apparatus Co.,Ltd.(ZHYQ) - diaphragm / process / for the food industry - image - 2
Add to favorites
Compare this product

Characteristics

Display
dial
Technology
diaphragm
Applications
process, for the food industry, medical
Other characteristics
high-pressure
Pressure

Max.: 600 bar
(8,702.26 psi)

Min.: 0 bar
(0 psi)

Precision

1.6 %

Dial diameter

100 mm
(3.9 in)

Process temperature

120 °C
(248 °F)

Description

The tri-clamp diaphragm pressure gauge, adopts high performance imported bourdon tube, it is suitable for the process pressure measuring of homogenizer, mulser and the similar machines. Basic specification Configuration - Bourdon tube Over Pressure - 1.5×FS Dial Diameter - 100mm Process Connection - Clamp 1”,1.5” Application ♦ Petroleum and chemistry equipment ♦ Fiber equipment ♦ Médical equipment ♦ Food machinery Feature ♦ Mechanical design ♦ To install easily ♦ Good shockproof and corrosion prévention ♦ High reliability and good performance
