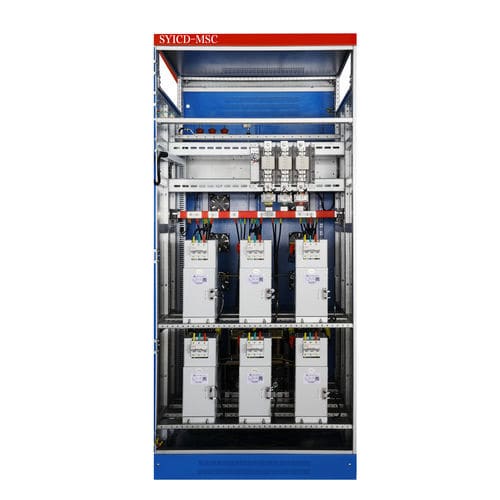

Cabinet capacitor bank SYICD-TSC series
power factorharmonicthree-phase

cabinet capacitor bank
cabinet capacitor bank
cabinet capacitor bank
Add to favorites
Compare this product


Characteristics

Electrical characteristics
power factor, harmonic, three-phase, low-voltage
Mounting
floor-mounted, cabinet
Other characteristics
for power factor correction, with detuned filters, modular
Amperage

Min.: 50 A

Max.: 300 A

Description

The non-linear load, such as rectifier, convertor and switch powering supply, these electronic devices are used extensively. Harmonic, as one of the most factors to affect power quality, when being large, it can damage electrical plant directly, especially power capacity and switch, produce harmonic oscillation, burnt distribution room and damage transformer, which makes users inconvenient and power factors reduced. In order to solve this problem, besides series filter reactor with conventional capacitor to absorb a portion of harmonics, SY compensation power filter improve temperature-control function, to greatly increase its longevity. Technical PARAMETERS Electrical parameters - Electrical parameters - Voltage:AC380V±10% Compensation capacity :67~574kvar Work frequency:50Hz/60Hz Response time:Thyristor≤20ms,synchronous switch≤1s,AC contactor≤3s Overload capacity:Voltage overload 1.1 times, current overload 1.3 times Target power factor:0.8~1.0(can be set) Control characteristics:Compensation type ,Total compensation, phase splitting compensation and hybrid compensation are optional. Control branches :1~21 branches Control type :Manual and automatic switching modes Switching algorithm:Cycle switching and code switching Protection function :Over voltage/ under voltage/ phase loss/ short circuit etc Structural characteristics :Protection grade - IP30 Color :RAL7035(can be customized) Installation way:Indoor installation Environment temperature - -25℃~40℃ Humidity :up to +40℃,≤90% Height above sea level:≤2000m(need to be customized when exceed)

Catalogs

No catalogs are available for this product.

See all of Sheng Ye Electric Co.,ltd‘s catalogs
