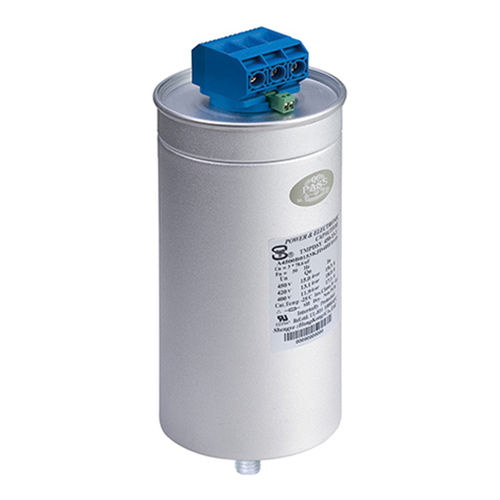

Power capacitor TMPOSY
aluminumpolypropylene filmmetalized polypropylene film

power capacitor
power capacitor
power capacitor
Add to favorites
Compare this product


Characteristics

Type
metalized polypropylene film, polypropylene film, aluminum
Configuration
cylindrical
Technical characteristics
power factor correction, self-healing, power, PFC, dissipation factor, dry, oil-filled, gas, split-phase, AC, three-phase, low-voltage
Applications
industrial, for power electronics
Voltage

Max.: 690 V

Min.: 280 V

Capacitance

Max.: 880 µF

Min.: 20 µF

Description

The H terminal capacitor is a new generation product in the world which is produced by Sheng Ye Electric,The H type capacitor is used for large current and large capacity occasions, maximum to 35mm conductors. By adopting the new type safe explosion protection structure, building block structure and filling with gas internal, the terminal possesses a more beautiful and delicate appearance. It is stable and reliable, with high anti-inrush current capability so as to meet the highest environmental grade requirement. When the capacitor running under over-temperature caused by power grid harmonic and over-voltage in the system, this kind of capacitor will output the control signal, cut off the switch and step into the exceeded temperature protection condition for preventing the capacitor from putting into power grid until the temperature decreased to an acceptable range, then it can switch into the working condition. In order to extend the capacitor and series reactor lifespan in the detuning compensation and tuning filter system, these several capacitors with dual protection can be installed in series to avoid the deviation of tuning causing by the failure of one or more capacitors, which will cause a certain number of harmonic current amplification and result in system breakdown. With the help of dual protection of capacitor it will force the random failure system out of working condition, until the maintenance is finished to prevent the spread of the accident. Voltage:below 1000V Normal voltage:250V,280V,400V,415V,440V,450V,480V,525V,690V. Capacity:0.5-50Kvar Frequency:50-60Hz Filling Agent:Oil,Resin
