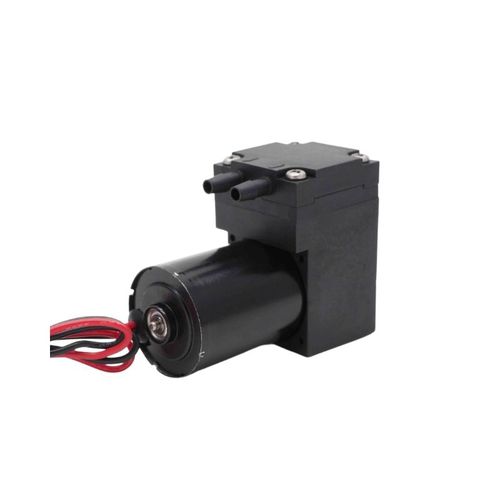

Diaphragm pump BD-03WB
waterfor liquified gaswith brushless DC motor

Diaphragm pump - BD-03WB - Shenzhen Boden Technology Development Co., Ltd - water / for liquified gas / with brushless DC motor
Diaphragm pump - BD-03WB - Shenzhen Boden Technology Development Co., Ltd - water / for liquified gas / with brushless DC motor
Diaphragm pump - BD-03WB - Shenzhen Boden Technology Development Co., Ltd - water / for liquified gas / with brushless DC motor - image - 2
Add to favorites
Compare this product

Characteristics

Technology
diaphragm
Fluid
water, for liquified gas
Operation
with brushless DC motor
Priming
self-priming
Mobility
stationary, mobile
Domain
industrial, for the beverage industry, for laboratory, for the printing industry, for medical applications
Applications
transfer, circulation, booster, suction, spraying, suction
Material
EPDM
Fluid specification
for low-viscosity fluids, for corrosive fluids
Voltage
24 V, 12 V, 6 V
Protection level
maintenance-free, corrosion-resistant
Other characteristics
high-efficiency, OEM, low-noise, high-flow, dry, PWM, low-power
Flow

Max.: 0.7 l/min
(0.18492 us gal/min)

Min.: 0.4 l/min
(0.10567 us gal/min)

Pressure

-0.03 MPa

Head

2 m
(6'06" )

Power

Max.: 12 W
(0.02 hp)

Min.: 7 W
(0.01 hp)

Fluid temperature

Max.: 45 °C
(113 °F)

Min.: 0 °C
(32 °F)

Input diameter

3 mm
(0.118 in)

Output diameter

4 mm
(0.157 in)

Length

64 mm
(3 in)

Width

30.4 mm
(1.2 in)

Height

49 mm
(1.93 in)

Weight

120 g
(4.23 oz)

Description

Customization is our standard practice: all our pumps can be modified to meet your specific requirements. And within a few days. Customized range of liquid pumps: Features • Self-priming • High flow rate • Efficient, durable design • Smallest size and lightest weight • Can transfer corrosion-resistant liquids • Maintenance-free and easy to install • Long life and continuous operation • Low noise, low vibrationvibration Applications • Liquid Analysis and Monitoring • Liquid Circulation and Transfer • Inkjet Printing • Liquid Dispensing
