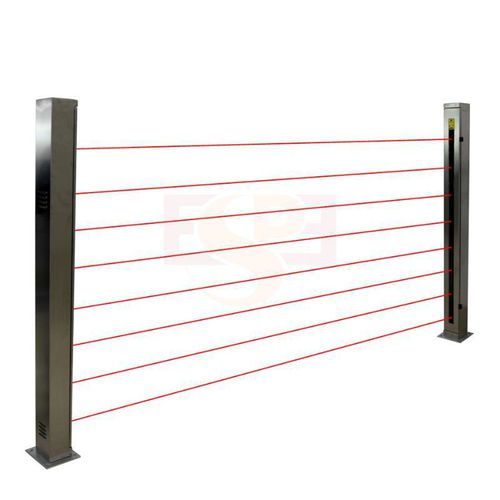

Access control light curtain ESCC series

multibeamthrough-beamIP65

ESCC series vehicle separator is a special application in highway toll stations to realize manual toll collection. Equipped with a strong, waterproof, dust-proof and temperature-regulating shell, ESCC can work not affected by high or low temperature and also work stably and effectively in the harsh environment. Parameter of safety light curtain • Supply voltage : DC24V±15% • Beam space : 20mm, 40mm • Resolution : 25mm, 45mm • Beams : 20mm beam space: 32, 6440mm beam space: 16, 32 • Wave length : 940nm • Capacity : 5) • Sensing method : Through-beam type • Output mode : NPN, PNP, RS485 • Type of output（OSSD） : PNP/NPN semiconductors，current 100MΩ • Ambient Operating Temperature : -40ºC-55ºC • Storage Temperature : -55ºC-80ºC • Ambient Humidity : When the temperature is 20 ºC, the relative air humidity is less than 85% • Enclosure rating : IP65 • Housing cross-section : 35*50mm
