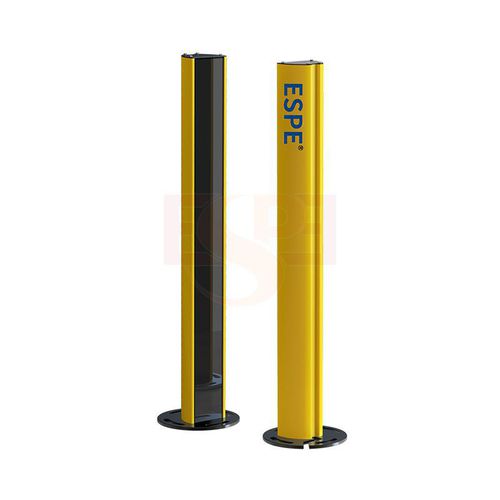

Safety light curtain ESQC series

multibeamthrough-beamIP65

1.Price range: $46-$723/set (Your order can be finished within 2-3 working days.). 2.ESQC series fence area safety light curtain can be used to assist ESN and ESE series safety curtain to form polyhedron protection. 3.It is mainly used for safety protection of automatic areas. The area protection shields can be directly installed on the ground surface, and it can be used with different numbers of reflector shields to form multiple safety barriers. Parameter of safety light curtain • Supply voltage : DC10V~30V • Capacity : <5W • Beam space : 10mm, 20mm, 40mm • Resolution : 20mm, 30mm, 50mm • Beams : 10mm beam space:32, 36, 40……17620mm beam space: 16, 18, 20……8840mm beam space:8, 10, 12……44 • Protective height : Protective height =（N-1）*beam gap，N is beam quantity • Wave length : 940nm • Response time : Response time =(N * 0.1ms) + 0.4ms, N is beam quantity • Type of output（OSSD） : PNP/NPN semiconductors，current 5°) • Sensing method : Through-beam type • Synchronization : Wire synchronization • Enclosure material : Aluminum alloy • Enclosure rating : IP65 • Housing cross-section : 99.6*75mm
