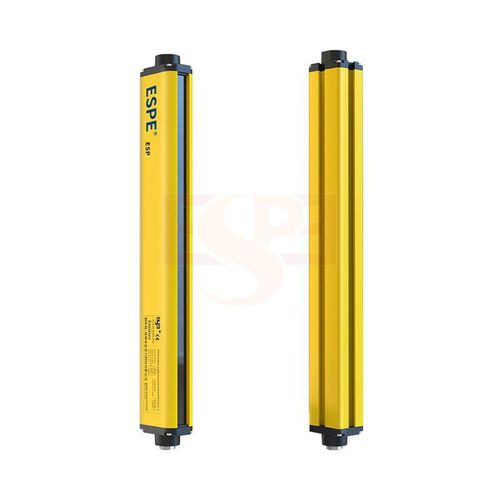

Safety light curtain ESP series

multibeamthrough-beamIP65

ESP series safety light curtain is specially designed for highlight environment, which can be used outside. Independent MCUS, self-inspection and overcurrent protection; ESPE choose unique lens to ensure 20m longest sensing distance; Transistor output can connect with PLC directly; Special enclosure can be installed with different method. Parameter of safety light curtain • Supply voltage : DC10V~30V • Capacity : <5W • Beam space : 20mm、40mm • Resolution : 30mm、50mm • Beams : 20mm beam space:8, 16, 24……16040mm beam space: 8, 16, 24……80 • Protective height : Protective height =（N-1）*beam gap，N is beam quantity • Wave length : 940nm • Response time : Response time =(N * 0.1ms) + 0.4ms, N is beam quantity • Type of output（OSSD） : PNP/NPN semiconductors，current 5°) • Sensing method : Through-beam type • Synchronization : Wire synchronization • Enclosure material : Aluminum alloy • Enclosure rating : IP65 • Housing cross-section : 35*50mm • Vibration resistance : 10Hz～55Hz，double amplitude each in X、Y、Z directions for 20 times. • Ambient operating temperature : -10℃-55℃（with no freezing） • Storage temperature : -30℃～70℃（with no freezing） • Ambient operating humidity : When temperature is 20℃，humidity max 85%
