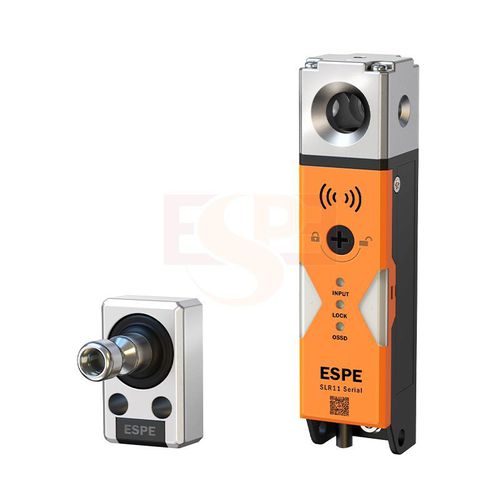

Security interlock device SLR11 series

1. With locking & monitoring function; 2. Optional coding modes: Universal coding & unique coding; 3. Independent redundant dual signal: In case of hazard caused by signal loop failure; 4. Self-diagnose & cross-diagnose: Periodic double cross-diagnose improves security; 5. Small size: 29.7*29.7 section size; 6. Flexible installation: Directly installed on aluminum frame less than 30mm, brackets is no need. Parameter of safety door switch Standard : ISO13849-1 (Category 4 PLe); IEC/EN60947-5-3 • Certificate : CE • Locking model : Mechanical lock/ Power to lock • Safety output : NPN*2/ PNP*2 Response time : Lock-unlock : 100ms (independent working) • Unlock-lock : Approximate 1mA Response time : Lock-unlock : 100ms (independent working) • Unlock-lock : Approximate 1mA Locking : Lock holding force : Over 2000N • Lock bolt insertion deviation • Less then 2mm • Mechanical endurance : Over 1 million times(door operaing speed 1m/s) • Mechanical endurance : • Over 1 million times(door operaing speed 1m/s) • Operating frequency : 1Hz • Minumum radius of • revolving door • Over 220mm • Manual unlocking : Front, back Cascade linking : Max 20 pieces Control output (OSSD output) • Output type : Transistor output *2 • Maximum load current : ≤200mA • Residual voltage (when it it on) : <2.5V@200mA • Voltage when OFF : ≤2V @wire cable 5m • Leakage current : ≤0.5mA • Maximum load capacity : 2.2uF • Load connection resistance • ≤2.5Ω AUX output(unsafe output) • Output type : Transistor output • Output quantity : 1 • Maximum load capacity : 50mA • Residual voltage (when ON status) : ≤2.5V @50mA
