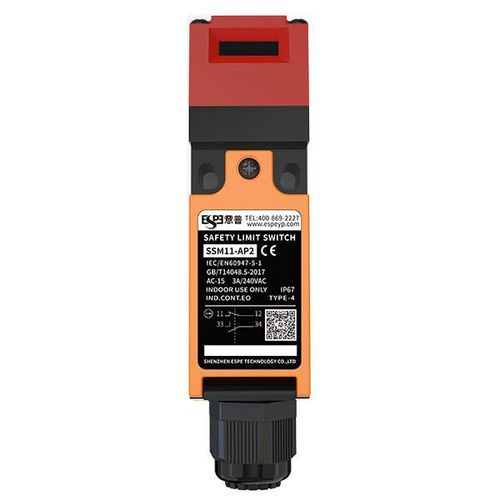

Key lock switch SSM11 series

single-polestandardIP67

1. Optional contacts; 2. Support general load and micro-load; 3. Rotated head; 4. Simple installation and wiring to save labor and install easily Safety level • Certificate : CE • Standard : EN60947-5-1、IEC60947-5-1、GB/T 14048.5、EN ISO 14119、GB/T 18831 • Protection rate : IP67 • Material : PA66 fire retardant • Mechanical lifespan : >1 million times • Electrical lifespan : Over 150,000 times • Using Type : AC-15 : DC-13 • Rated operating voltage(Ue) : 240V : 24V • Rated operating current(Ie) • 3A • 2A Electrical parameter • Contact resistance : <200mΩ • Rated insulation voltage (Ui) : 300V • Anti-electric shock level : Class II (double insulation) • Pulse withstand voltage (EN60947-5-1) : 2.5kv • Insulation resistance : 100MΩ above（<500VDC） • Short-circuit protection : 10A, 250V requires a quick-break fuse • Vibration resistance : 10-55HZ, double amplitude 1.5mm • Compact resistance : Durability1000m/s² • Conditional short-circuit current : 100A (EN60947-5-1) • Space of contact : Above 2 x 2mm Action characteristic • Direct opening force : Standard model: minimum 60N • Direct opening travel : Over 10mm • Allowed operating speed : 0.1m-0.5m/s • Allowed operating frequency : Maximum 20 times/minute Environment • Operating environment : 3 (EN60947-5-1) • Operating temperature : -10°C to 60°C ( no freezing) • Operating humidity • <85% RH
