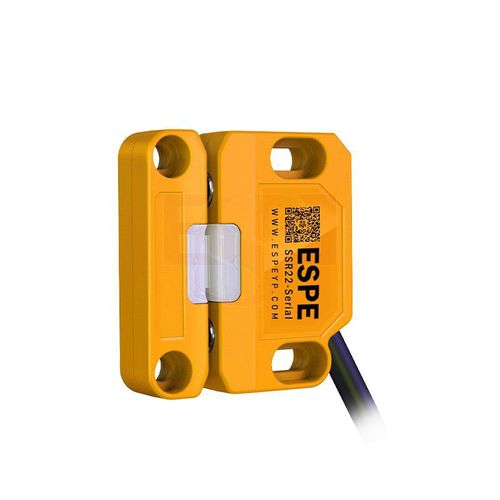

Capacitive switch SSR22

single-polestandardIP65

1. Self-diagnose and cross-diagnose design: periodic mutual diagnose improve the safety level; 2. Independent and redundant output: In case any risk caused by single loop failure; 3. Magnetic holding force can reach 15N, which can replace the door magnet. Parameter of safety door switch • Standard : ISO 13849-1（Cat. 4/PLe）;IEC/EN60947-5-1;IEC/EN60947-5-3 • Power supply : DC24V±15% • Capacity : 15N • Frequency : 1Hz • OSSD output : PNP or NPN signal.Load below 200mA, residual voltage below 1V (except voltage caused bycable extension), leakage current below 1mA • Protective circuit • Overvoltage protection, power supply reverse polarity protection, and overcurrent protection • Encoding type : Universal encoding, unique encoding • Protection rate : IP65 • Housing setectional size : 48*30mm • Vibration resistance : Frequency 10Hz-55Hz, amplitude 0.35±0.05mm, 20 times each at X, Y and Z directions • Ambient working temperature : -10°C-55°C (no freezing) • Storage temperature : -30°C-70°C (no freezing) • Working humity : When temperature 20°C, humidity max 85%
