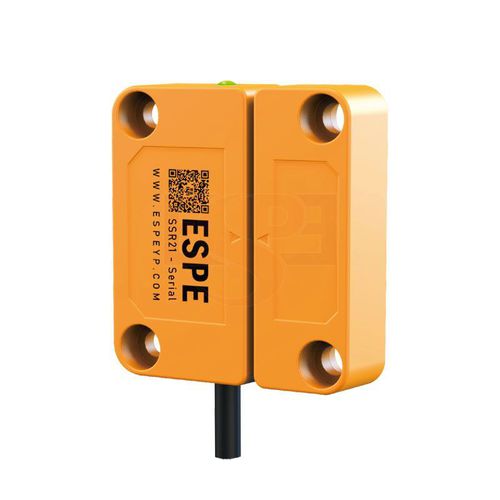

Capacitive switch SSR21

single-poleIECstandard

1. Self-diagnose and cross-diagnose: Periodic dual mutual-diagnose to improve safety; 2. Independent redundant dual output: In case potential safety hazards caused by single loop failure. Parameter of safety door switch • Standard : ISO13849-1 IEC/EN60947-5-3 • Power supply : DC24V±15% • Capacity : <1W • Response time : 50ms • Output current : 150mA • Safety output(OSSD) : PNP or NPN (transistor output)Load current below 200mA, residual voltage below 1V(except voltage drop caused by cable extension), leakage current below 1mA • Frequency : 1Hz • Protective circuit • Overvoltage protection, power supply reverse polarity protection, and overcurrent protection • Encoding type : Universal encoding, unique encoding • Detection range: : Horizontal: 0-10mm, vertical: 0-5mm • Protection rate : IP65 • Housing setectional size : 36*23mm • Vibration : Frequency 10 Hz - 55 Hz, amplitude 0.35±0.05mm, 20 times each at X, Y, Z directions • Ambient working temperature : -10°C-55°C (no freezing) • Storage temperature : -30°C-70°C (no freezing) • Working humity : When temperature 20°C, humidity max 85%
