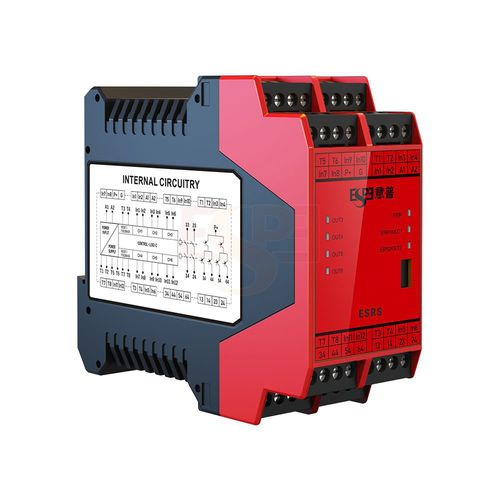

Emergency stop safety relay ESRS

2 NOPNPPLe

1. Designed in accordance with ISO13849-1(Category4, PLe); 2. Relay output: 2 normally open contacts; 3. Transistor output: 4 PNP signal output; 4. Self-diagnose and redundant circuit design; 5. Support a variety of safety input signals. Electrical data • Power supply : 20V~30VDC • Electricity break : ≤110mA(24VDC) • Input feature • Channel : 6 • Input current : ≤50mA(24VDC) • Wire resistance : ≤15Ω • Support device : Emergency stop, safetygate, safety light curtain, safeyt mat, two hand button, interlock switch, reset button Output feature • Contacts : • Material of contacts : AgSnO₂ • Fuse protection : 10A fast;6A slow • Switching capacity : 5A/250VAC;5A/24VDC Semiconductor feature • Output : 4PNP • Drive power : 2A(24VDC) • Time feature • Operation time : ≤100ms • Release time : ≤30ms • Restore time : ≤100ms • Power break time : 20ms Ambient feature • Electro magnetic compatibility : EN60947,EN61000-6-2,EN61000-6-4 • Vibration : Frequency:10Hz~55Hz;Amplitude:0.35mm • Ambient temperature : -20℃~+60℃ • Storage temperature : -40℃~+85℃ • Relative Humidity : 10%~90% Insulating feature • Overvoltage level : Ⅲ • Pollution level : 2 • Rated insulating voltage : 250VAC • Rated impact voltage : 6000V(1.2/50us) • Dielectric strength : 1500VAC,1min • Clearance & creepage : EN60947-1
