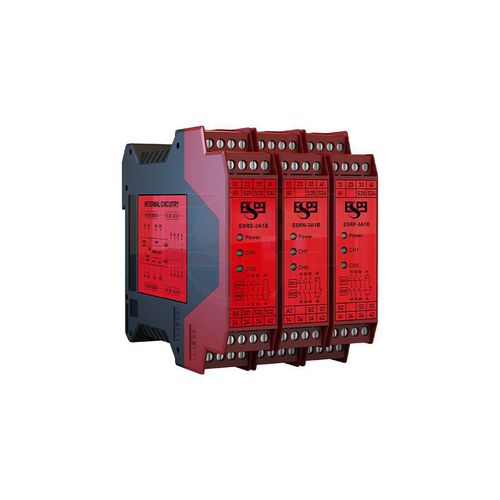

Safety relay module ESR

DIN rail

1. Design according to ISO13849-1 (category 3, Ple); 2. Relay output: 2NO or 3NO, and 1 NC auxiliary contact; 3. Optional manual reset and automatic reset; 4. Self-diagnose and redundant circuit design； 5. Standard 35mm width guide mounting design. Standard level • Reference standard : ISO 13849-1（Category 4/Pl e） • Safety level : Category 4/ Pl e • Electric parameter • Supply voltage : DC24V±10% • Power consumption : <3W • Response time : <20ms • Suction buffer time : <100ms • Power-on restart time : <1s • Protective circuit : Input power overvoltage protection, anti-reverse protection • Safety input : Double NPN normally closed input (ESRN type), double PNP normally closed input (ESRP type); Dual door or emergency stop button (ESRS type) • Input synchronously : Unlimited S1 is in the front of S2 • Safety output : • 2 normally open passive contacts,1 normally closed passive contacts; • Three normally open passive contacts and one normally closed passive contact; • B10 data : Rated load: 400,000 times; Low load: 2 million times • Contacting rating : AC15: 5A/250V; DC13: 6A/24V • Electric lifespan : ≥10 times（1NO: 5A250VAC, resistive load, 1s on 9s off） • Mechanical lifespan : ≥10 millions times Environment • Vibration resistance : Frequency 10Hz~55Hz, amplitude 0.35±0.05mm, 20 times each at X, Y, Z direction • Impact resistance : Acceleration 10g, pulse duration 16ms, X, Y and Z direction 1000 times each • Operational temperature : -25ºC~+60ºC • Storage temperature : -40ºC~+85ºC • Protection level : Shell / terminal protection: IP40/IP20
