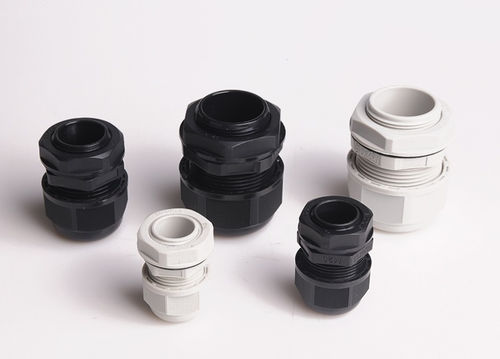

Plastic cable gland m8,m10,m12,m16,m20,m25,m32
waterproof

plastic cable gland
plastic cable gland
Add to favorites
Compare this product


Characteristics

Material
plastic
Protection level
waterproof
Cable diameter

Min.: 1.5 mm
(0.06 in)

Max.: 15 mm
(0.59 in)

6 mm
(0.24 in)

Thread diameter

Min.: 8 mm
(0.31 in)

Max.: 25 mm
(0.98 in)

16 mm
(0.63 in)

Operating temperature

Min.: -45 °C
(-49 °F)

Max.: 125 °C
(257 °F)

80 °C
(176 °F)

Description

Thread:Metric, PG, G(PF),NPT thread Material:UL approved nylon PA66 ( Flammability UL 94 V-2) for A, C, F parts .( Accept to make flammability UL 94V-0). EPDM rubber for B, D parts (Also accept to make supper rubber: resist high temperature, resist strong acid/alkali,etc) Protection degree:IP68-10 Wording temperature:-40℃-100℃ in static state, or instantaneous heat resistance up to 120℃; -20℃-80℃ in dynamic state,or instantaneous heat resistance up to 100℃. Features:The claws and seals of excellent design, sealing nut have a click sound and re-open, can hold cable firmly and have a wider cable range. Resistant to salt water, weak acid, alcohol,oil, grease and common solvency. Colors:Black, gray, and other colors available upon request.
