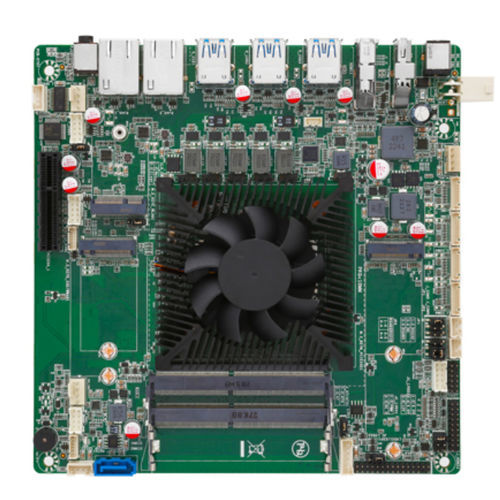

Mini-ITX motherboard SV1a-37026Intel® Celeron®12th Generation Intel® Core™13th Generation Intel® Core™
Add to favorites
Compare this product
Characteristics
- Format
- mini-ITX
- Processor
- Intel® Celeron®, 12th Generation Intel® Core™, 13th Generation Intel® Core™
- Chipset
- Intel®
- Memory
- DDR4 SO-DIMM, DDR4 3200 MHz
- Extension slot
- SATA3, M.2
- Applications
- industrial
- Operating system
- Linux, Windows 10
- Memory frequency
- DDR4 3200 MHz
- Connectivity
- HDMI, LVDS, WiFi, Bluetooth, USB 2.0, RS-232, RS-485, DisplayPort, eDP, Ethernet, 6 USB 3.0
Description
Storage
- 1*SATA 3.0
Expansion Interface
1*PCIe x4, Gen 4
1*M.2 (Key-E, 2230, support Wifi+BT)
1*M.2 (Key-B, 2242/3052, support 5G/SATA)
1*M.2 (Key-M, 2280, PCIe x4 Gen 4)
BIOS
- AMI UEFI BIOS
System
- Windows 10, Linux
I/O Interface
Ethernet
- 2*Realtek® 1Gbps PCIe Ethernet Controller, RJ45
Serial
- 5*RS232, 1*RS232/RS485
USB
6*USB 3.0, 4*USB 2.0
Audio
- Realtek® 5.1 channel HDA Codec, with MIC/Line-out and Amplifier
GPIO
- 8*Programmable GPIO
Display
Display Interface
1*HDMI: max resolution up to 4096*2160@30Hz
1*HDMI Header: max resolution up to 4096*2160@30Hz
1*DP: max resolution up to 3840*2160@60Hz
1*eDP/LVDS: eDP, max resolution up to 3840*2160@60Hz
LVDS, max resolution up to 1920*1200@60Hz
Multiple Display
- Triple
Mechanical & Environment
Dimension
- 170*170mm
Power Input
- DC 12V
Temperature - Operation: 0℃~60℃, Storage: -20℃~75℃
Relative Humidity
- Operation: 10%~90%, Storage: 5%~95%, non-condensing
