Mini-ITX motherboard SV1a-86614P
Intel® Core i3Intel® Core i5Intel® Core i7

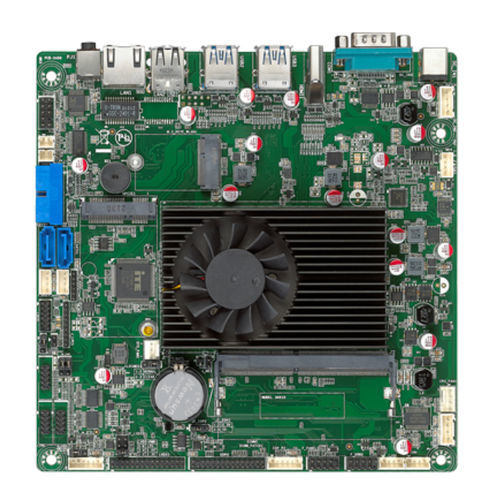

Mini-ITX motherboard - SV1a-86614P - Shenzhen Seavo Technology Co., Ltd. - Intel® Core i3 / Intel® Core i5 / Intel® Core i7
Mini-ITX motherboard - SV1a-86614P - Shenzhen Seavo Technology Co., Ltd. - Intel® Core i3 / Intel® Core i5 / Intel® Core i7
Mini-ITX motherboard - SV1a-86614P - Shenzhen Seavo Technology Co., Ltd. - Intel® Core i3 / Intel® Core i5 / Intel® Core i7 - image - 2
Add to favorites
Compare this product

Characteristics

Format
mini-ITX
Processor
Intel® Core i3, Intel® Core i5, Intel® Core i7, Intel® Core™ i7-8665UE, Intel® Whiskey lake-U series
Chipset
Intel®
Memory
DDR4 SO-DIMM
Extension slot
SATA3, M.2
Applications
industrial
Operating system
Linux, Windows 10
Memory frequency
DDR4 2400 MHz
Connectivity
LVDS, USB 2.0, HDMI, VGA, RS-232, GbE, RS-485, 4 USB 3.0, eDP, Ethernet

Description

CPU canbe customized into Intel® Whiskey Lake 8th CoreTM i3/i5/i7 or Celeron® 4205U/ 4305U Memory - DDR4-2400, 1*SO-DIMM, up to 16 GB Storage - 1*SATA 3.0, 1*mSATA Expansion Interface - 1*M.2 (Key-E, 2230, Wifi+BT) BIOS - AMI UEFI BIOS System - Windows 10, Linux I/O Interface Ethernet - 1* Realtek® 1Gbps PCIe Ethernet Controller,RJ45 Serial - 3*RS232, 1*RS232/RS485 USB 4*USB 3.0, 6*USB 2.0 2*USB 3.0 headersupported by Premium CPU Audio - Realtek® 5.1 channel HDA Codec, with MIC/Line-out andAmplifier GPIO - 8*Programmable GPIO Other - 1*Cash Drawer Control header Display Display Interface 1*HDMI: max resolution up to4096x2160@24Hz 1*VGA/eDP: VGA, max resolution up to1920x1200@60Hz eDP, max resolution up to2048x1280@60Hz 1*LVDS/eDP: LVDS, max resolution up to1920x1200@60Hz eDP, max resolution up to2048x1280@60Hz Multiple Display - Triple Mechanical & Environment Dimension - 170*170mm Power Input - DC 12V Temperature - Operation: 0℃~60℃, Storage: -20℃~75℃ Relative Humidity - Operation: 10%~90%, Storage: 5%~95%, non-condensing
