Mini-ITX motherboard SV1a-23526
Intel® Celeron®Intel® Core i3Intel® Core i5

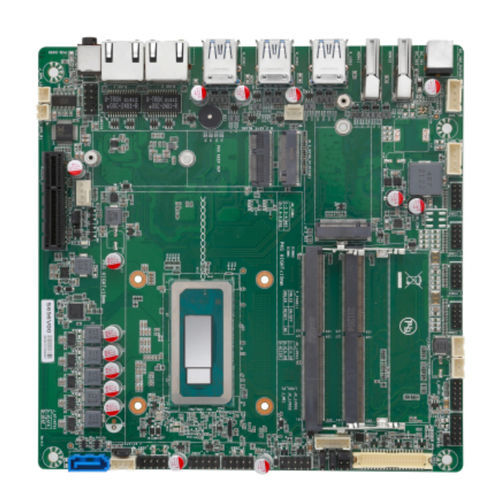

Mini-ITX motherboard - SV1a-23526 - Shenzhen Seavo Technology Co., Ltd. - Intel® Celeron® / Intel® Core i3 / Intel® Core i5
Mini-ITX motherboard - SV1a-23526 - Shenzhen Seavo Technology Co., Ltd. - Intel® Celeron® / Intel® Core i3 / Intel® Core i5
Mini-ITX motherboard - SV1a-23526 - Shenzhen Seavo Technology Co., Ltd. - Intel® Celeron® / Intel® Core i3 / Intel® Core i5 - image - 2
Add to favorites
Compare this product

Characteristics

Format
mini-ITX
Processor
Intel® Celeron®, Intel® Core i3, Intel® Core i5, Intel® Core i7, 12th Generation Intel® Core™
Chipset
Intel®
Memory
DDR5 SO-DIMM
Extension slot
SATA3, M.2
Applications
industrial
Operating system
Linux, Windows 10
Memory frequency
DDR5 4800 MHz
Connectivity
USB 2.0, gigabit Ethernet, 2.5 GbE, LVDS, WiFi, Bluetooth, HDMI, RS-232, eDP, 6 USB 3.0, GbE, RJ45, RS-485

Description

TDP up to 28W Memory - DDR5-4800, 2*SO-DIMM, up to 64 GB Storage - 1*SATA 3.0 Expansion Interface 1*PCIe x4, Gen 4 1*M.2 (Key-E, 2230, support Wifi+BT) 1*M.2 (Key-B, 2242/3052, support 5G/SATA) 1*M.2 (Key-M, 2280, PCIe x4 Gen 4) BIOS - AMI UEFI BIOS System - Windows 10, Linux I/O Interface Ethernet - 2*Intel® Gigabit Ethernet Controller (up to 2.5 GbE), RJ45 Serial - 5*RS232, 1*RS232/RS485 USB 6*USB 3.0, 7*USB 2.0 Audio - Realtek® 5.1 channel HDA Codec, with MIC/Line-out and Amplifier GPIO - 8*Programmable GPIO Display Display Interface 2*HDMI 1.4: max resolution up to 4096*2160@30Hz 1*eDP/LVDS: eDP, max resolution up to 3840*2160@60Hz LVDS, max resolution up to 1920*1200@60Hz Multiple Display - Triple Mechanical & Environment Dimension - 170*170mm Power Input - DC 12V Temperature - Operation: 0℃~60℃, Storage: -20℃~75℃ Relative Humidity - Operation: 10%~90%, Storage: 5%~95%, non-condensing
