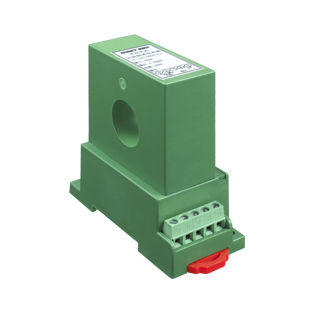

Magneto-resistive current transducer

DIN railACprecision

The high precision perforation type AC micro current isolation transducer developed by our company applies to microampere or milliampere AC current detection in various electrical systems, such as lightning arrester status detection ( good, lose efficacy, damage), a variety of electrical equipment, devices, instruments insulation and leakage current detection. Features * High detection precision Detection range up to 0.5～100m; Low end detection deviation less than15uA; * Easy to use Adopts perforative input, it is very easy for users to install and debug; * Strong overload ability Can withstand high current impulse; It can also be tested in high voltage environment, avoid the inescapable weakness of connection detection; * Wide power adaptation The product needs only single power supply, at the same time the influence of the power supply down-deflection is small, solved the problem of traditional (Hall magnetic balanced principle) dual power source operation and great influence of power supply down-deflection. * High stability The product adopts various shielding measures, very effective inhibition of spatial interference to ensure the accuracy and stability of testing. * Excellent temperature characteristics Every 1℃ changes of the temperature, the output drift is less than 400ppm; * Excellent characteristic of zero point Different from the principle of the traditional (hall magnetic equilibrium principle), with excellent characteristic of zero point.
