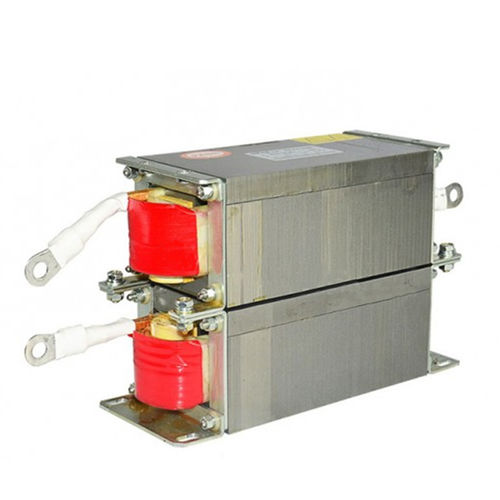

DC coil 160W; 360A; 400V |SKS-DCL-0360-CL
filterlow-noisewith overcurrent protection

DC coil
DC coil
DC coil
DC coil
DC coil
Add to favorites
Compare this product

Characteristics

Technology
filter
Electrical characteristics
DC, low-noise, with overcurrent protection
Configuration
line
Applications
for inverters, motor, high-temperature
Current

Max.: 1,600 A

360 A

Min.: 5 A

Voltage

Max.: 1,200 V

400 V

Min.: 500 V

Description

SKS-DCL-0360-CL/4 DC Reactor DC line reactors also realize the two way benefit of line reactors. Line voltage distortion and notching caused by the servo motor is filtered from the incoming AC line supply and conversely interference imposed on the line by other devices is filtered from the servo. The available short circuit current from the line is limited.DC reactor also known as DC choke. Material Features: 1.High Temperature Resistant : The inside insulation material is combined with frameless process, the reactor’s temperature heat-resisting ability is strong, and the class F or H is optional. 2.Noise Decrease : reactor air gap adopts argon arc welding process, which has low noise, small magnetic flux leakage and stable inductance. 3.Electric Magnetic Resistance: Coiled with foil winding process, choke has strong resistance of electric magnetic force and good presentation quality 4.Small volume: Core with grain-oriented cold-rolled silicon steel sheets, making reactors have high reliability, small size, light weight and low cost. Characteristic of this series: 2.Voltage Range: DC 500V-1200V 3.Dielectric Strength: Core-winding,AC 3000V/50Hz/5mA/ free of demage in 10s (test in factory) 4.Insulation Resistance:Core-Winding,DC 1000V,Resistance >100M ohm 5.Noise: Less than 65dB(to be measured at the point 10 meter away from the reactor horizontally 6.Standard: GB 19212.1-2008GB/T1094.6-2011
