Capacitive touch screen panel PC SP152

multitouch screen15.6"Intel® Celeron® J6412

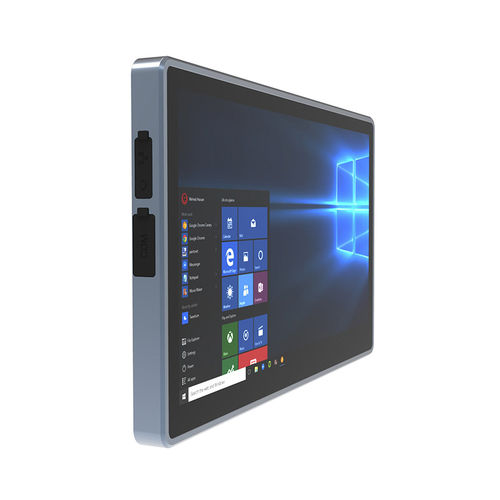

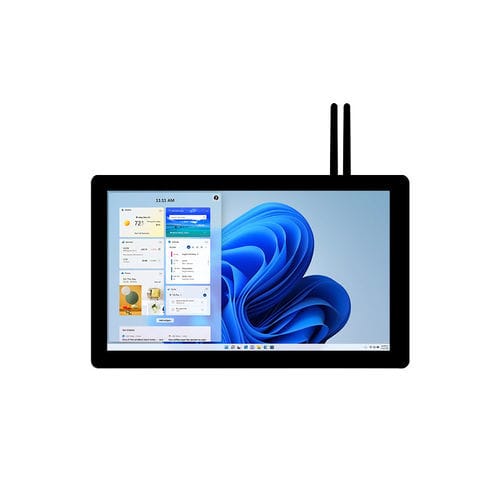

Product overview The SP152 is a 15.6-inch industrial rugged panel PC designed for factory and field applications. It runs Windows 11 Pro / IoT / Home (Windows 10 optional) and is powered by Intel Celeron J6412 (quad-core, 2.00GHz, turbo up to 2.60GHz, 10W TDP) with Intel UHD Graphics. The unit supports scalable memory and storage and includes a 15.6" 1080×1920 TFT-LCD with 10-point capacitive touch, WiFi4 (2.4G), aviation-style plug interfaces and dual RS232 ports. IP65 protection and wide operating temperature make it suitable for harsh environments.

Key features

• Multi-Windows support: Windows 11 Pro/IoT/Home (Windows 10 optional)
• CPU: Intel Celeron J6412 (Quad Core, turbo 2.60GHz); optional Intel Core (6th/7th/8th gen) or Phydium D2000
• Display: 15.6" 1080×1920 TFT-LCD, 200–250 nits; 10-point capacitive touch
• Memory/storage: standard 16GB RAM / 256GB SSD; optional 8GB RAM, 128GB or 512GB storage
• Connectivity: WiFi4 (802.11a/b/g/n, 2.4G), LAN, Bluetooth; stable wireless performance
• I/O: DC-IN ×1, HDMI ×1, USB3.0 ×2, USB2.0 ×1, LAN ×1, RS232 ×2 (DB9), aviation plug interface
• Protection: IP65 dust and waterproof rating; wide operating temperature -20°C to 55°C
• Chassis dimensions: 384×229×40 mm; approx. 3000 g; suitable for industrial mounting

Technical specifications

• Model: SP152
• Brand: Sincoole
• OS: Windows 11 Pro/IoT/Home (Windows 10 optional)
• CPU: Intel Celeron J6412 (2.00GHz, turbo 2.60GHz, 10W TDP); optional CPU choices available
• GPU: Intel UHD Graphics (16 EUs)
• RAM/ROM: 16GB/256GB standard; optional 8GB RAM; 128GB/512GB ROM options
• Display: 15.6" 1080×1920 TFT-LCD; 200 nits (TYP) / 250 nits (MAX)
• Touch: 10-point capacitive
• Wireless: WiFi4 (2.4G); optional WWAN modules available
• I/O ports: DC-IN, HDMI, USB3.0×2, USB2.0×1, LAN, RS232×2 (DB9), aviation plug
• Protection & environmental: IP65; Operating -20°C to 55°C; Storage -30°C to 60°C
• Weight & dimensions: 384×229×40 mm; approx. 3000±100 g (unit)
• Accessories: DC charger (12V 4A), WiFi antennas ×2, aviation plug cables ×8; optional VESA bracket, speakers

Application scenarios

• Industrial automation control and HMI
• Factory floor monitoring and data acquisition
• Integration with legacy RS232 equipment
• Industrial workstation and edge computing

Ordering & compliance

• Certificates: CE, FCC (as applicable); optional certifications available
• Packaging: unit with accessories as listed; custom configurations on request
