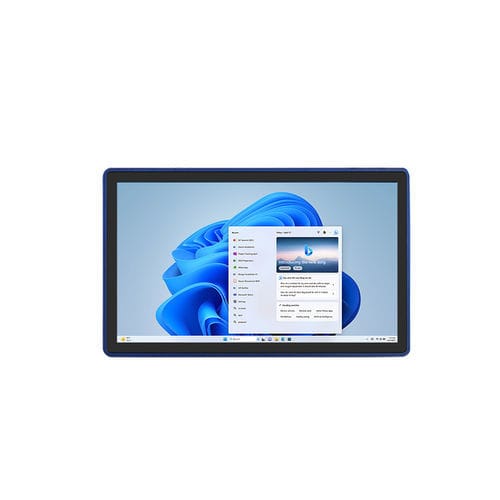

Windows 11 Pro tablet SP15-J

Windows 10 Pro15.6"Intel® Celeron® N5100

Product Overview
The SP15-J is a 15.6-inch industrial tablet designed for Windows-based workstations in harsh environments. It ships with Windows 10 Pro (Windows 10 Home / Windows 11 Pro optional) and is powered by an Intel Celeron N5100 quad-core processor (1.10GHz, turbo up to 2.80GHz) with UHD Graphics (24 EUs). Configurations include 8GB RAM (4GB optional) and 256GB storage (128GB / 512GB optional). The 15.6" 1080×1920 IPS screen supports 10-point touch and stylus input. Connectivity is provided by a Realtek 8822CE WiFi/Bluetooth module (internal or external antenna optional) and a comprehensive set of I/O ports. The enclosure meets IP65 for dust/water protection and resists 1.2 m drops; dimensions 384×234×22.5 mm, weight approx. 2600 g.

Key Features

• Multi-Windows support: Windows 10 Pro (Windows 10 Home / Windows 11 Pro optional)
• Intel Celeron N5100 (quad-core, turbo up to 2.80GHz) with UHD Graphics 24 EUs
• Scalable memory and storage: 8GB (4GB optional); 256GB (128GB / 512GB optional)
• 15.6" IPS 1080×1920 display with 10-point touch and stylus support
• Realtek 8822CE WiFi/Bluetooth 2-in-1 module; internal or external antenna optional
• Rich I/O: HDMI ×1, RJ45 ×1, RS232 ×1, USB 3.0 ×2, dual DC power inputs
• IP65 dust/waterproof and 1.2 m drop resistance for industrial use
• Dual 4Ω 2.0W speakers and wide operating temperature range (-20°C to 55°C)

Technical specifications (SP15-J)

• OS: Windows 10 Pro (Windows 10 Home / Windows 11 Pro optional)
• CPU: Intel Celeron N5100 (Quad Core, 1.10GHz; turbo up to 2.80GHz)
• GPU: UHD Graphics (24 EUs)
• RAM: 8GB (4GB optional)
• Storage: 256GB (128GB / 512GB optional)
• Display: 15.6" IPS, 1080×1920, 10-point touch, stylus support
• Wireless: WiFi 802.11a/b/g/n/ac, 2.4G/5G; Module: Realtek 8822CE (WiFi/Bluetooth)
• Bluetooth: v4.2
• Audio: Dual 4Ω 2.0W speakers
• Ports: HDMI ×1; RJ45 ×1; RS232 ×1; Earphone ×1; DC ×2 (4.0×15mm); USB 3.0 ×2
• Buttons: V+ / V- , Power
• Size & Weight: 384×234×22.5 mm; 2600±50 g (without antenna)
• Operating temp: -20°C to 55°C; Storage temp: -40°C to 60°C
• Protection: IP65; 1.2 m drop resistance

Application Scenarios

• Industrial control stations and HMI
• Field service and maintenance workstations
• Construction site monitoring and data collection
• Manufacturing production line terminals

Accessories & Multimedia

• Included accessories: Box; DC charger (12V 4A)
• Supported image formats: BMP, JPG, GIF, PNG
• Supported video formats (hardware decoding up to 1080P): MPEG-1/2/4, H.263/H.264, RMVB, WMV/VC-1, MVC, AVS, MJPEG
• Supported audio formats: MP3, WMA, WAV, OGG, FLAC, ALAC, APE, AAC, AC-3, DTS (DTS may require license)
