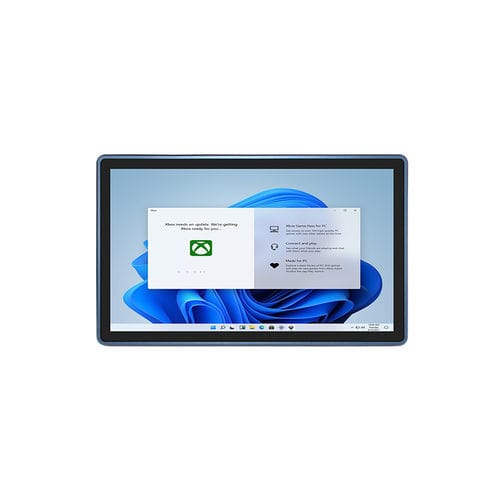

Windows 10 IoT Enterprise tablet SP15-U

Windows 10 ProWindows 11 Pro15.6"

Product Overview
The SP15-U is a rugged 15.6-inch industrial tablet designed as a Windows workstation for logistics, manufacturing and field engineering. Ships with Windows 11 Pro (Windows 10 Pro / IoT optional). Available with Intel I5-1235U or optional Intel I7-1255U, integrated Intel Iris Xe Graphics, scalable LPDDR5 memory up to 64GB and M.2 2242 SATA storage options. The 15.6" 1080×1920 10-point touch display supports a stylus. Connectivity includes Intel Wi‑Fi 6 (AX201) with Bluetooth 5.2, USB Type-C (PD/DP/Data), multiple USB A ports, HDMI, Gigabit RJ45 and RS232. Rugged protection: IP65 and 1.2 m drop resistance; wide operating temperature range.

Key Features

• OS: Windows 11 Pro (Windows 10 Pro / IoT optional)
• CPU: Intel I5-1235U (10-core/12-thread) or Intel I7-1255U optional (10-core/12-thread)
• GPU: Intel Iris Xe Graphics (80EU for I5; 96EU for I7)
• Memory & Storage: LPDDR5 up to 64GB; M.2 2242 SATA 128/256/512GB
• Display & Input: 15.6-inch 1080×1920; 10-point multi-touch; stylus support
• Wireless: Intel Wi‑Fi 6 AX201 (802.11a/b/g/n/ac/ax); Bluetooth 5.2
• I/O: USB-C (PD/DP/Data), 2× USB 3.2 Gen1 Type-A, HDMI, RJ45 (Gigabit), RS232, dual DC 12V inputs, 3.5mm audio
• Durability: IP65 dust/waterproof; 1.2 m drop resistance; operation -20°C to 55°C

Technical Specifications
OS: Windows 11 Pro (Windows 10 Pro / IoT optional)
CPU: Intel I5-1235U (10 cores/12 threads; 1.3GHz base, up to 4.4GHz) ; Intel I7-1255U optional (10 cores/12 threads; 1.7GHz base, up to 4.7GHz)
GPU: Intel Iris Xe Graphics (80EU for I5; 96EU for I7)
RAM/Storage: LPDDR5 up to 64GB; M.2 2242 SATA 128/256/512GB
Display: 15.6" 1080×1920, 10-point touch, stylus support
Wireless: Intel Wi‑Fi 6 AX201; Bluetooth 5.2; internal or external antenna optional
I/O: DC 12V 3A ×2; HDMI Type-A ×1; USB 3.2 Gen1 Type-A ×2; USB Type-C 3.2 Gen1 (PD/DP/Data) ×1; RJ45 (Gigabit); RS232 (DB9); Earphone 3.5mm
Audio: Dual speakers 4Ω 2.0W ×2
Dimensions & Weight: 384 × 234 × 22.5 mm; 2600 ± 50 g (without antenna)
Environmental: IP65; Drop resistance 1.2 m; Operation -20°C to 55°C; Storage -40°C to 60°C

Application Scenarios

• Industrial control and HMI
• Smart manufacturing terminals
• Industrial AI analytics and edge computing
• Field service and professional engineering

Characteristics / Technical specifications

• Model: SP15-U
• Brand: Sincoole
• OS: Windows 11 Pro (Windows 10 Pro / IoT optional)
• CPU options: Intel I5-1235U or Intel I7-1255U (10 cores / 12 threads)
• GPU: Intel Iris Xe (80EU / 96EU)
• RAM: LPDDR5 up to 64GB
• Storage: M.2 2242 SATA 128/256/512GB
• Display: 15.6" 1080×1920, 10-point touch, stylus support
• Wireless: Intel Wi‑Fi 6 AX201; Bluetooth 5.2
• I/O: USB-C (PD/DP/Data), 2× USB 3.2 Gen1, HDMI, RJ45, RS232, dual DC 12V inputs, 3.5mm audio
• Ruggedness: IP65, 1.2 m drop resistance
• Operating temp: -20°C to 55°C; Storage temp: -40°C to 60°C
• Dimensions / Weight: 384×234×22.5 mm / 2600±50 g
