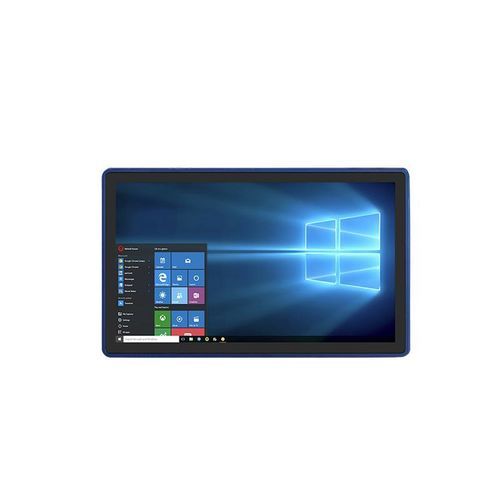

IPS LCD panel PC SP15-M

projected capacitive touchscreenmultitouch screentouch screen

Product overview

The SP15-M is a rugged 15.6-inch industrial all-in-one PC running Windows (Windows 10 Pro default; Windows 10 Home/IoT/Windows 11 Pro optional). It integrates an Intel I5-8200Y processor with Intel UHD Graphics 615, scalable memory and storage, a 15.6-inch FHD IPS 10-point touchscreen with stylus support, integrated wireless, comprehensive I/O, IP65 dust/water protection and 1.2 m drop resistance for stable operation in harsh industrial and logistics environments.

Key features

• Multiple Windows options: Windows 10 Pro (default); Windows 10 Home / IoT; Windows 11 Pro optional
• Intel I5-8200Y (dual core, quad thread; 1.30 GHz base, turbo up to 3.90 GHz) with Intel UHD Graphics 615
• Memory options: 8GB / 16GB / 8GB+128GB eMMC / 16GB+128GB eMMC (optional)
• Storage options: 256GB / 512GB / 1TB (optional)
• 15.6-inch FHD (1080×1920) IPS display with 10-point touch; stylus supported
• Intel Dual Band Wireless-AC 7265 (WiFi/Bluetooth) with internal or external antenna option
• Rich I/O: HDMI ×1; RJ45 ×1; RS232 ×1; Earphone ×1; DC ×2 (4.0×15mm); USB 3.0 ×2
• IP65 dustproof and waterproof rating and 1.2 m drop resistance
• Dual 4Ω 2.0W speakers; wide operating temperature range (-20°C to 55°C)

Application scenarios

• Industrial control and automation
• Industrial data analysis and HMI
• Advanced manufacturing workstations
• Field service and on-site diagnostics

Technical specifications

• Model: SP15-M
• OS: Windows 10 Pro (default); Windows 10 Home / IoT; Windows 11 Pro optional
• CPU: Intel I5-8200Y (1.30 GHz base, turbo up to 3.90 GHz)
• GPU: Intel UHD Graphics 615
• RAM: 8GB; optional 8GB+128GB eMMC / 16GB / 16GB+128GB eMMC
• Storage: 256GB (standard); 512GB / 1TB optional
• Display: 15.6 inch, 1080×1920, IPS, 10-point touch, stylus support
• Wireless: 802.11a/b/g/n/ac; Dual Band Wireless-AC 7265 (WiFi/Bluetooth), antenna built-in or external optional
• Bluetooth: v4.2
• Audio: Dual 4Ω 2.0W speakers
• I/O ports: HDMI ×1, RJ45 ×1, RS232 ×1, Earphone ×1, DC ×2 (4.0×15mm), USB 3.0 ×2
• Dimensions: 384×234×22.5 mm
• Weight: approx. 2600 g (without antenna)
• Ruggedness: IP65, 1.2 m drop resistance
• Operating temperature: -20°C to 55°C; Storage temperature: -40°C to 60°C
• Included accessory: DC charger (12V 4A)
