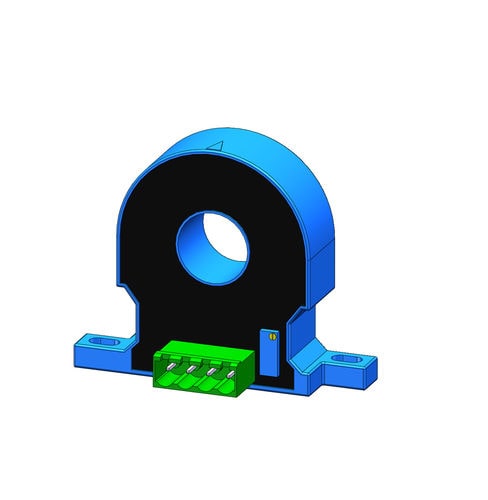

Closed-loop current sensor SCD1-AC series
fixedDCAC

closed-loop current sensor
closed-loop current sensor
closed-loop current sensor
closed-loop current sensor
Add to favorites
Compare this product


Characteristics

Technology
closed-loop
Mounting
fixed
Electrical characteristics
DC, AC
Other characteristics
leakage
Primary current

Max.: 0.1 A

Min.: 0.01 A

Description

SCD1-AC Series AC/DC Leakage Current Sensor is the smallest window size AC/DC leakage current sensor. It is the leakage current sensor which develop on base of magnetic modulation closed loop principle, apply unique patented technology for measure tiny ac and dc leakage current (mA level from 10ma to 100ma). Model:SCD1-AC Primary Nominal Current RMS Ipn (A): 10ma, 20mA, 50mA, 100mA Output voltage @Ipn Rl=10KΩ Ta=25℃:±5V DC, 5V AC Supply Voltage: DC ±12V (±5%) Window diameter: SCD1-AC: - ø 20 Applications Widely used in emerging industries and fields such as electric power, industrial automation, solar photovoltaic, etc. To provide you the more accurate models and prices, please describe more information about your requirements: Your Requirements * (please describe your requirements considering such as): 1. - Type of Applications or Market 2. - Type of Sensor needed (either product name or functional description) 3. - Quantity of samples needed 4. - Quantity of sensor needed in a 1-3 years production cycle )
