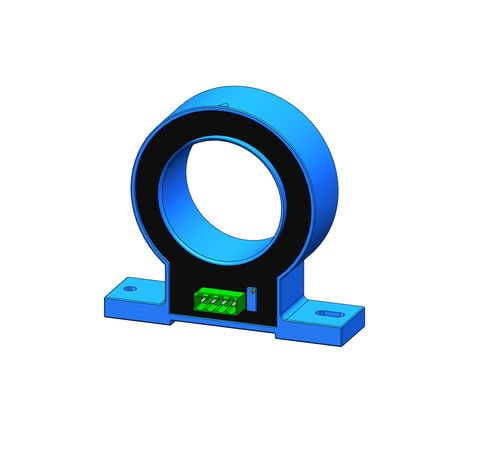

Magneto-resistive current sensor SCD3

magneto-resistive current sensor
magneto-resistive current sensor
magneto-resistive current sensor
magneto-resistive current sensor
Add to favorites
Compare this product


Electrical characteristics
Other characteristics
Primary current

Max.: 100 mA

Min.: 10 mA


SCD3 series DC Leakage Current Sensor is the current sensor which develop on base of magnetic modulation closed loop principle, apply unique patented technology convents the measured DC micro current 10mA..100mA into the standard DC voltage output according to the linear proportion. Features: DC leakage current measurement DC earth fault measurement Small thermal drift Low current consumption General specification: Primary Nominal Current RMS Ipn (A):DC 10ma~100mA Convenient ±12V ~±15V Dual power supply Output voltage @Ipn Rl=10KΩ Ta=25℃:±5V Accuracy: ± 1% F.S. Power Consumption:≤13 mA Operational Temperature: -10~ +75℃ Diameter: 60mm All SCD Series includes: SCD1- Round perforation ø20 SCD2- Round perforation ø40 SCD3- Round perforation ø60 SCD6- Round perforation ø18 SCD9- Round perforation ø80 Standard: CE
