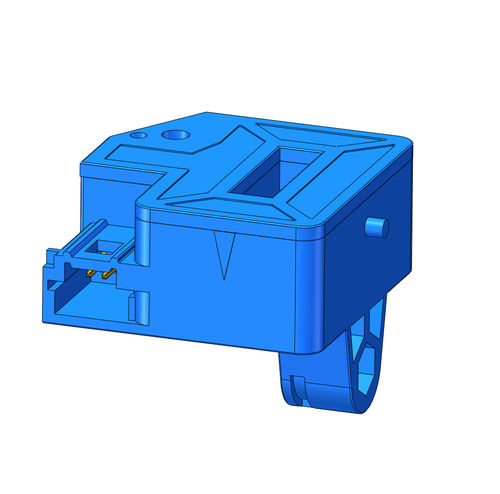

Open-loop Hall effect current sensor SCK28 series
panel-mountDCAC

open-loop Hall effect current sensor
open-loop Hall effect current sensor
open-loop Hall effect current sensor
open-loop Hall effect current sensor
open-loop Hall effect current sensor
open-loop Hall effect current sensor
open-loop Hall effect current sensor
open-loop Hall effect current sensor
Add to favorites
Compare this product


Characteristics

Technology
open-loop Hall effect
Mounting
panel-mount
Electrical characteristics
AC, DC
Other characteristics
through-hole, solid-core, high-accuracy, analog
Primary current

Max.: 800 A

100 A

Min.: 100 A

Description

SoCan produce a wide range of hall effect current sensors for DC and AC, Pulse current measurement in PCB and panel mount versions. This SCK28 series is a open loop current sensor develops on hall effect principle. It can measure from 100A to 800A primary input current and output analog signal. Powered with DC +5V supply, output 2.5V±2.0V voltage signal. SCK28 series current sensor has widely usage for industrial equipment such as: - Variable frequency inverters - Photovoltaic inverters - Welding inverters - Switched mode power supplies - Uninterruptible power supplies - Automobile supplies Main features are list as below: - rated currents of 100 A to 800 A - types for + 5 V supply with voltage output. Optionally internal or external reference voltage - nice accuracy ±1%, - low offset and low hysteresis - low drift Vo for high temperature and low temperature To provide you the more accurate models and prices, please describe more information about your requirements: Your Requirements * (please describe your requirements considering such as): 1.Type of Applications or Market 2.Type of Sensor needed (either product name or functional description) 3.Quantity of samples needed 4.Quantity of sensor needed in a 1-3 years production cycle )
