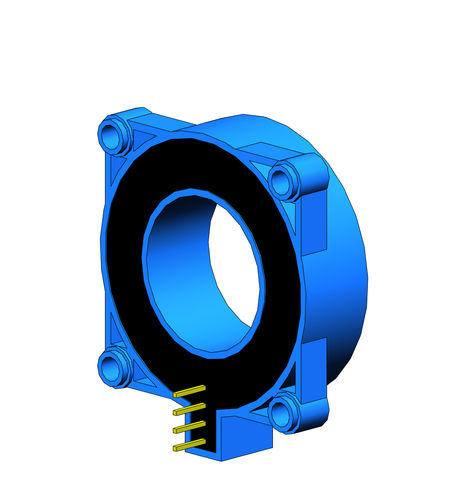

Hall effect integrated circuit current sensor SCK29 series
PCBDCAC

Hall effect integrated circuit current sensor
Hall effect integrated circuit current sensor
Hall effect integrated circuit current sensor
Add to favorites
Compare this product


Characteristics

Technology
Hall effect
Mounting
PCB
Electrical characteristics
DC, AC
Primary current

Min.: 100 A

Max.: 500 A

Description

SCK29 Series Hall effect Open loop current sensor Measurement: DC, AC, Pulse Current Nominal Value: 100A..500A Measuring Range: 200A..750A Second. Nominal Signal: Voltage Second. Nominal Signal Value: Instantaneous 2.5 +/- 2 V Supply Voltage: External DC Unipolar +5V Accuracy: 1 % Response Time: <5μs Offset Voltage And Temperature Characteristics: within±0.1%℃ Op. Temperature: -40 °C / 125 °C Technology: Open loop Hall effect Mounting: On primary fastening Applications: Automotive Battery Management, Drives, Inverters, etc To provide you the more accurate models and prices, please describe more information about your requirements: Your Requirements * (please describe your requirements considering such as): 1.Type of Applications or Market 2.Type of Sensor needed (either product name or functional description) 3.Quantity of samples needed 4.Quantity of sensor needed in a 1-3 years production cycle )
