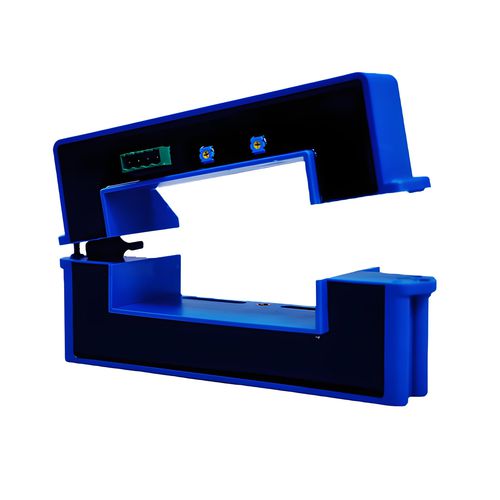

Open-loop Hall effect current sensor SCY10

DCAChigh-accuracy

Product Overview
SCY10 Series Hall Current Sensor is a new generation open loop split core current sensor based on the Hall effect principle. It can accurately measure DC, AC, pulse current, and various irregular waveform currents under electrical isolation conditions. The sensor features a square window type perforation for copper connections and is widely used in inverters, power supplies, DC panels, welding machines, and other equipment.

• Open loop measurement
• Galvanic isolation between primary and secondary circuits
• Measures DC, AC, or pulse currents
• Split core design allows opening/closing without removing the busbar line for easy installation
• Large square hole perforation, mainly for copper conductor current measurement
• High accuracy, low power consumption, high reliability, and strong overload capacity

Technical Data
Parameters (25°C) Model: SCY10-

Nominal RMS Current (Ipn):

• ±800AT
• ±1000AT
• ±1200AT
• ±1500AT
• ±2000AT
• ±2500AT
• ±3000A

Measuring Range (Ip): 2*Ipn
Load resistance Rmax: ≥10kΩ
Output Voltage: ±4V
Working voltage: DC ±12V or ±15V (±5%)
Accuracy @ Ta=25°C: ±1%
Linearity @ Ta=25°C: ±1%
Withstand voltage: 3kVrms/50Hz/min
Offset Voltage: < ±30mV
Offset temperature characteristics: < ±0.1%/°C
Thermal drift of Vo: < ±1mV/°C (If=0)
Hysteresis offset: < ±25mV (if=F.S.)
Response time: < 7uS
Bandwidth (-3db): ± DC - 4KHZ
Current consumption: <±23mA
Operating temperature: -40~+85°C
Storage temperature: -40~+85°C

Dimension (mm)
Primary aperture: □104*40mm
Output terminal: 2EDGVC-5.08-4P; Mating plug: 2EDGK-5.08-4P
IP indication direction is the positive direction of the current, OFS is the zero adjustment, and GIN is the output regulation
Incorrect wiring may cause damage to the sensor
Size error: ±1mm

Instructions
SCY10 Series Split Core Hall Effect Current Sensor is a dual power supply hall current sensor with open loop measurement. There is galvanic isolation between the primary and secondary circuits of the sensor, allowing measurement of DC, AC, or pulse currents. The split core design allows the sensor to open and close without removing the busbar line, making installation easy. The large square hole perforation is mainly for measuring copper conductor current. Features include high accuracy, low power consumption, high reliability, and strong overload capacity.

Characteristics / Technical Specifications

• Open loop Hall effect current sensor
• Split core design for easy installation
• Measures DC, AC, and pulse currents
• Galvanic isolation between primary and secondary circuits
• Nominal RMS current: ±800AT to ±3000A
• Output voltage: ±4V
• Working voltage: DC ±12V or ±15V (±5%)
• Accuracy: ±1%
• Linearity: ±1%
• Withstand voltage: 3kVrms/50Hz/min
• Operating temperature: -40~+85°C
• Primary aperture: 104x40mm square
• Output terminal: 2EDGVC-5.08-4P
