Open-loop Hall effect current sensor SCY7
split-core

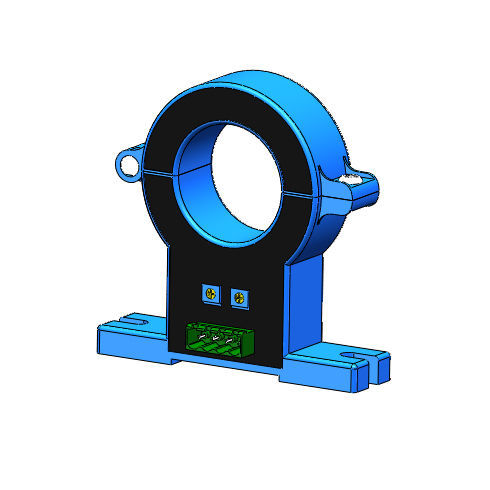

Open-loop Hall effect current sensor - SCY7 - Shenzhen Socan Technologies Co.,Ltd - split-core
Open-loop Hall effect current sensor - SCY7 - Shenzhen Socan Technologies Co.,Ltd - split-core
Add to favorites
Compare this product
Go to the Shenzhen Socan Technologies Co.,Ltd website for more information

Characteristics

Technology
open-loop Hall effect
Other characteristics
split-core
Primary current

3,000 A

Description

Product Details
  • Based on Hall effect measurement principle, open loop circuit mode.
  • The isolation voltage between primary and secondary is greater than 3000VAC.
  • Can be opened and closed up and down, no need to disassemble the busbar, easy to install.

Drawing & Dimension (mm)
  • See product image for drawing and dimensions.

Notes
  • Size error: ±1mm
  • Primary aperture: φ40mm
  • Output terminal: 2EDGVC-5.08-4P, Mating plug: 2EDGK-5.08-4P
  • The IP indication direction is the positive direction of the current, OFS is the zero adjustment, and GIN is the output regulation
  • Incorrect wiring may cause damage to the sensor.

Caractéristiques / spécifications techniques
  • Measurement principle: Hall effect, open loop
  • Isolation voltage: >3000VAC between primary and secondary
  • Primary aperture: 40mm diameter
  • Output terminal: 2EDGVC-5.08-4P
  • Mating plug: 2EDGK-5.08-4P
  • Adjustments: IP (current direction), OFS (zero adjustment), GIN (output regulation)
