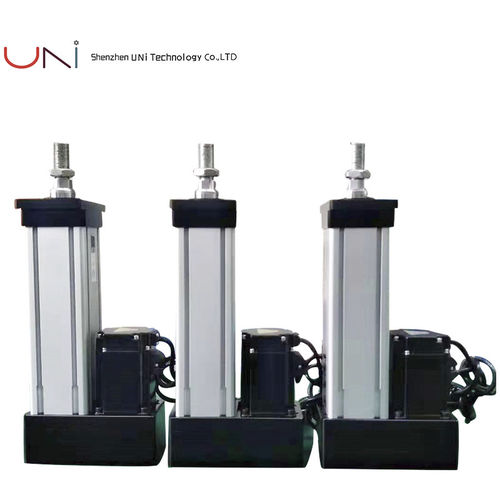

Electric servo-actuator UNI-A40-Ulinearwith servo-motorpiston
Add to favorites
Compare this product
Characteristics
- Type
- electric
- Movement
- linear
- Technology
- with servo-motor, piston, stepper, planetary gear, ball screw, timing belt
- Material
- aluminum, stainless steel
- Motor
- AC, with brushless DC motor
- Protection class
- IP65, maintenance-free
- Applications
- industrial, for lifting
- Other characteristics
- positioning, precision, high-speed, high-efficiency, custom, programmable, maintenance-free, standard, with brake, small, with parallel motor, adjustable-stroke, lightweight, in-line, with RS-485 interface
- Stroke
Max.: 2,000 mm
(78.74 in)Min.: 0 mm
(0 in)- Bore
75 mm
(2.95 in)- Force
Max.: 4.5 kN
Min.: 0 kN
- Motor power
Max.: 1.5 kW
(2.04 hp)Min.: 0 kW
(0 hp)- Rotation angle
Max.: 35 °
Min.: 0 °
- Speed
Max.: 1,000 mm/s
Min.: 0 mm/s
- Return speed
Max.: 1,000 mm/s
Min.: 0 mm/s
- Repeatability
0.02 mm
(0.0008 in)
Description
Click for more details:
https://unite-ch.net/product/custom-low-cost-uni-servo-actuator/
Low cost Servo Actuator for lifting and simulator are in stock now. Made of aluminum housing, actuators are light. The refined surface treatment is processed as well. What’s more, this new econocial series own premium quality. Also, it is commonly used in automation industrial design.
UNI servo actuator is equiped with servo motor. So it can be precisely controlled. Grease added inside offers a smooth movement. UNI electric linear actuators provide low noise motion. Bescides, piston are maintenance-free without any oil-leaking issue. As a result, electric servo actuator is a perfect replacement of air and hydradulic cylinder. Furthermore, anti-rotation mechanism prevents piston rod from rotating.
Noted:
The load and speed of actuator will be calculated based on the gear ratio and motor specification.
Gearbox will be assembly when high load, smooth speed needed. Various high precision brands of gearbox are choosable.
All UNI low cost Servo Actuators will be mounted with motor. Servo drive sent along with incremental encoder and cables. Panasonic, Yaskawa, Ormon, Siemens and other brands of motor are available.
If you prefer use your familiar motor or gearbox, no problem. Please send us the 3D models. UNI engineer team will design and custom the mounting for you. We will make sure they can perfectly fit.
Ormon PNP/NPN type of magnetic limit switch(sensors) are optional.
Contact:
Miya Huang-Sales Manager
sales@unite-ch.net
WhatsApp:+86 134 2182 9809
www.unite-ch.net
https://unite-ch.net/product/custom-low-cost-uni-servo-actuator/
Low cost Servo Actuator for lifting and simulator are in stock now. Made of aluminum housing, actuators are light. The refined surface treatment is processed as well. What’s more, this new econocial series own premium quality. Also, it is commonly used in automation industrial design.
UNI servo actuator is equiped with servo motor. So it can be precisely controlled. Grease added inside offers a smooth movement. UNI electric linear actuators provide low noise motion. Bescides, piston are maintenance-free without any oil-leaking issue. As a result, electric servo actuator is a perfect replacement of air and hydradulic cylinder. Furthermore, anti-rotation mechanism prevents piston rod from rotating.
Noted:
The load and speed of actuator will be calculated based on the gear ratio and motor specification.
Gearbox will be assembly when high load, smooth speed needed. Various high precision brands of gearbox are choosable.
All UNI low cost Servo Actuators will be mounted with motor. Servo drive sent along with incremental encoder and cables. Panasonic, Yaskawa, Ormon, Siemens and other brands of motor are available.
If you prefer use your familiar motor or gearbox, no problem. Please send us the 3D models. UNI engineer team will design and custom the mounting for you. We will make sure they can perfectly fit.
Ormon PNP/NPN type of magnetic limit switch(sensors) are optional.
