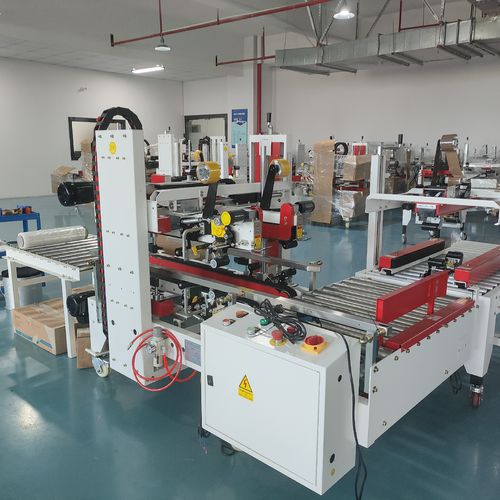

Automatic Carton Forming & Bottom Sealing Machine

Product Overview
This automatic carton forming and sealing machine efficiently produces and seals corrugated boxes for packaging lines. It features vertical forming, automatic tape application, and intelligent monitoring for reliable, high-speed operation. Designed for easy integration and low maintenance, it is a robust solution for various carton packaging needs, with ODM customization available for specific sizes.
Technical Specifications

• Machine Dimensions (L×W×H): Approx. 2000 × 1900 × 1560 mm
• Machine Weight: 500 kg
• Power Supply: 220V, 50Hz
• Air Pressure: 6 kgf/cm², 450 NL/min
• Conveyor Height: 600 mm
• Carton Size Range (L×W×H): 300-500 × 150-400 × 150-400 mm (Custom sizes accepted)
• Tape Width: 48-72 mm
• Forming Speed: 6-10 boxes/min (360-600 pcs/h)
• Production Efficiency: ≥ 95%
• Forming Method: Vertical
• Magazine Capacity: Approx. 50 flat blanks (varies with material)

Key Features & Benefits

• High-Speed Automation: Forms and seals up to 10 boxes per minute automatically.
• Smart Operation: No Tape and No Carton alarms prevent errors and reduce waste.
• Large Material Capacity: Integrated magazine holds ~50 blanks for continuous running.
• Built-in Safety: Includes overload protection and safety doors for secure operation.
• Easy to Use & Maintain: Designed for simple adjustment, operation, and low utility consumption.
• Sturdy Construction: Robust design with a professional finish for production line integration.
•
