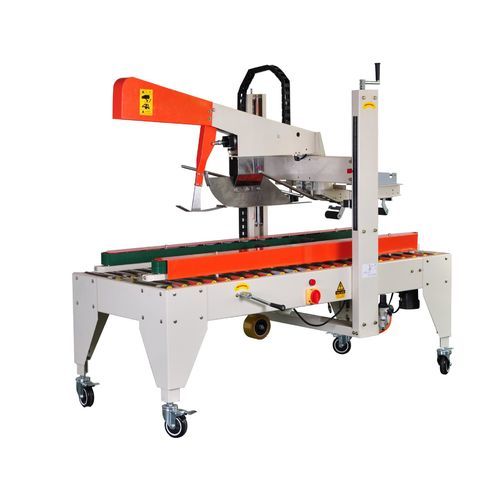

Automatic sealing machine TS50

foodcartonbox

The TS50 is an automatic top-and-bottom flap folding and tape-sealing machine for standardized cartons, with manual adjustment for different box sizes. It is intended for final packaging in e-commerce, logistics, food and consumer goods sectors.

Key features

• Manual size adjustment: quick, tool-free adjustment of machine width and height to accommodate a wide range of carton dimensions.
• Pneumatic drive system: provides fast, smooth and quiet operation with industrial-grade components.
• Continuous operation design: vertical carton magazine allows on-the-fly reloading to support uninterrupted production.
• High efficiency and stability: mechanical design optimized for reliable high-speed operation and consistent, secure sealing.
• Ease of use: intuitive controls, low maintenance requirements and built-in safety features.

Technical specifications

• Model: TS50
• Sealing speed: 20 m/min
• Adjustable carton range (L×W×H): 200 - 600 × 150 - 500 × 150 - 500 mm
• Power supply: 110V / 220V, 50/60 Hz, single phase
• Power consumption: 420 W
• Tape width: 48 / 60 / 75 mm
• Air consumption: 50 NL/min
• Operating air pressure: 0.6 MPa
• Discharge table height: 600 ± 150 mm (adjustable)
• Machine dimensions (L×W×H): 1770 × 850 × 1520 mm
• Machine weight: 250 kg
