Automatic packaging machine CS50

continuous-motiontwin folded plyvertical

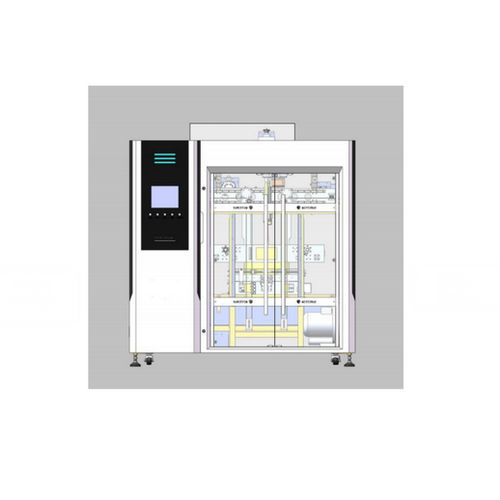

CS50 Automatic Bulk Bag Sealing Machine For Carton Bag Sealer Bag Hot Sealing and Boxing Machine

Overview

The CS50 is an automatic system designed for handling and packaging bulk bags (such as those containing powders, granules, or fruits). It automates the processes of bag lifting, sealing, flap tucking, and auto transfer to final boxing, streamlining packaging for bulk materials.

Applicable Industries

Granular & Powder Materials

Bulk Fruits & Produce

Caps, Closures, and Pumps

Automotive Supplies & Components

Medicines & Pharmaceutical Products

Technical Parameters

Model        CS50

Sealing Speed    360–480 pcs/h (opt. 15–20 ppm)

Carton Dimensions  300–500 × 300–400 × 300–400 mm

Power Supply    380 V / 50 Hz / 6 kW

Air Consumption   600 NL/min

Operating Air Pressure 0.6–0.8 MPa

Discharge Table Height 600 mm

Machine Dimensions  2000 × 1600 × 2250 mm

Machine Weight   1150 kg

Key Features

Multi-Function Integration: Combines bag lifting, sealing, flap folding, and tucking into the box in a single, efficient automated process.

Streamlined Size Adjustment: Manual changeover for different carton sizes is quick and straightforward, typically requiring 10-20 minutes.

Optimized Electro-Pneumatic Design: Incorporates a rational electrical and pneumatic structure for consistent performance and high durability.

Standalone or In-Line Operation: Offers the versatility to work independently or as part of an integrated automated packaging system.

Economical & Safe: Engineered for simple operation, cost-effectiveness, long service life, and a high standard of safety with minimal maintenance needs.
