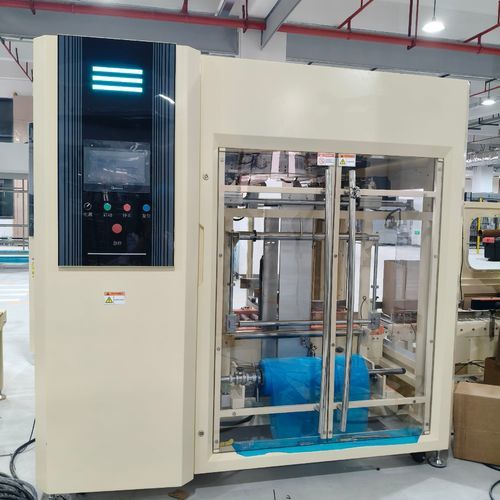

Automatic bag loader CI50

Overview
The CI50 is a fully automatic system that loads pre-bagged products into cartons by integrating carton forming, bag insertion, flap folding and sealed box ejection into one continuous operation. It is designed for industrial packaging lines to automate loading of bagged items with consistent timing and alignment.

Applicable industries

• Granular & Powder Products (e.g., fertilizers, chemicals)
• Packaged Fruits & Vegetables
• Caps, Pumps, and Dispensers
• Automotive Parts & Supplies
• Pharmaceuticals & Medical Supplies

Key features

• Complete automation: carton erection, bag insertion, flap folding and sealed box ejection performed in a single continuous cycle.
• Quick changeover: manual adjustments for different carton sizes in approximately 10–15 minutes to reduce downtime.
• Robust electrical control: optimized electrical layout and control system for stable, precise operation.
• High flexibility: suitable for standalone use or integration into a fully automated packaging line.
• User-oriented design: intuitive operation, straightforward maintenance and low failure rate to maximize uptime.

Technical specifications

• Model: CI50
• Output: 260 - 480 pcs/h (option: 15-20 ppm)
• Bag dimensions (L×W×H): 300 - 500 × 300 - 400 × 300 - 400 mm
• Power supply: 380V, 50Hz, 6 kW
• Air consumption: 600 NL/min
• Operating air pressure: 0.5 - 0.8 MPa
• Discharge table height: 600 mm
• Machine dimensions (L×W×H): 2120 × 1800 × 1950 mm
• Machine weight: 1200 kg
