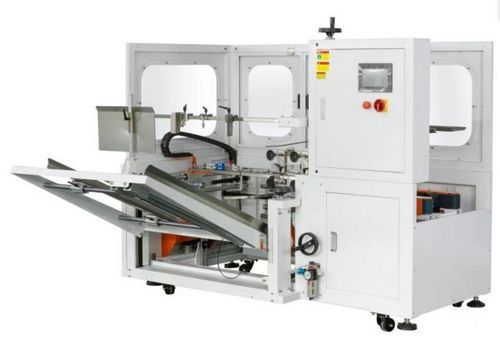

Automatic erection machine C50 case erector semiautomatic carton erection machine

Overview

The Automatic Case Erector is a robust, high-speed solution designed to automate the first critical step in your packaging line: transforming flat carton blanks into perfectly formed, bottom-sealed cases. Engineered for reliability and seamless integration, it eliminates manual labor, reduces variability, and sets a consistent foundation for all downstream packaging processes—whether used as a standalone unit or within a fully automated system.

Technical Specifications

Parameter Specification

Throughput Speed 500–600 cases/h (opt. 20 ppm)

Carton Size Range 200–500 × 150–400 × 150–400 mm

Power Supply 220 V / 380 V, 50/60 Hz

Air Consumption 0.6–0.8 m³/min

Operating Air Pressure 0.5–0.7 MPa

Machine Dimensions 2000 × 2000 × 1850 mm

Machine Weight 450 kg

Key Features

• Quick & Easy Adjustments: Tool-free changeover in under 5 minutes allows rapid adaptation to various carton sizes.
• Precision-Engineered Sealing: Patented forming heads and hot-melt glue or tape sealing systems ensure square, stable, and secure cases every time.
• Continuous Operation: Large-capacity magazine holds up to 500 flat blanks for extended unmanned runtime.
• Smart Diagnostics & Safety: User-friendly HMI with real-time monitoring, fault alerts, and integrated safety guarding.
• Line-Ready Design: Compatible with all major bag inserting, filling, bag sealer,packing, and sealing systems for end-to-end automation.

Applications

• E-commerce & Logistics
• Food & Beverage
• Pharma & Healthcare
• Consumer Goods & Cosmetics
• Automotive & Industrial Parts
