UV dryer 450A

in-linefor bottlescuring

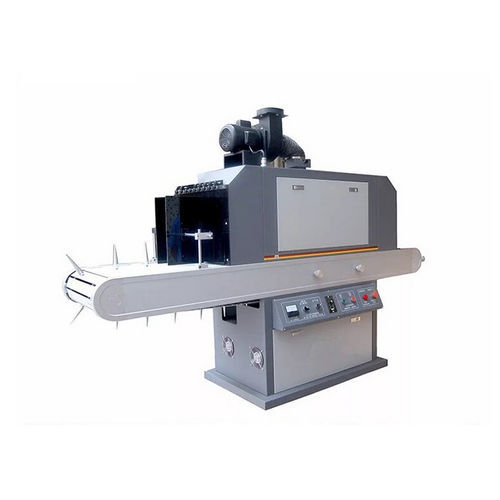

UV Curing Oven for Bottles & Containers


Overview
This UV curing oven provides a highly efficient and cost-effective solution for instant curing on a wide variety of substrates, including metal, glass, and plastic containers. Designed for versatility and precision, it ensures rapid, high-quality surface finishing for diverse production needs, from cosmetic jars to household cleaner bottles.
Technical Specifications
• Max. Substrate Width: 300 mm
• Substrate Height Range: 25 - 250 mm
• Curing Speed: 1,500 - 3,000 pcs/hour
• Conveyor Belt Width: 450 mm
• Machine Weight: 300 kg
• UV Lamp Options: 4kW or 5kW, single or dual lamp configuration
Core Features & Advantages
• High-Efficiency UV System: Features a powerful, adjustable UV system. Output power can be finely tuned (±0.1) via the control panel for optimal curing of different inks or coatings.
• Fully Adjustable Process: Both conveyor speed and the distance between the UV lamp and the product are adjustable, allowing precise control over curing intensity and exposure time.
• Uniform Curing for Cylindrical Objects: Equipped with conical holders that rotate bottles and cylindrical containers during curing, ensuring even exposure on all sides.
• Safe & Automated Operation: Includes effective UV light shielding for operator safety and an automatic unloading system for streamlined production.
• Exceptional Versatility: Capable of curing a broad range of container types and sizes, such as jars, detergent bottles, and shampoo containers, on a single platform.
