Flame surface treatment machine

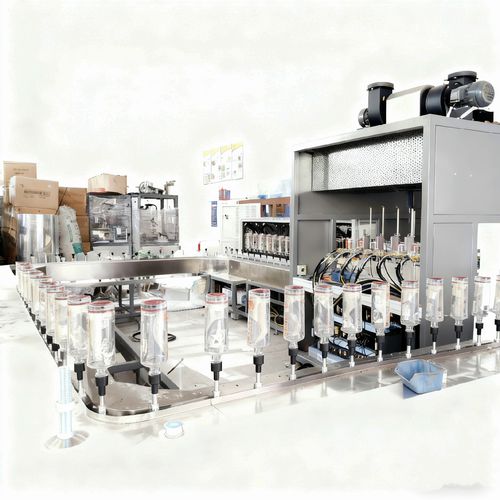

High-Performance Flame Treatment Machine for Glass Bottles
Product Overview
This high-performance flame treatment machine is engineered to significantly increase the surface energy of glass bottles, ensuring optimal adhesion for subsequent labeling, coating, or printing processes. Renowned for its stability and efficiency, it delivers consistent and reliable pretreatment results across a wide variety of bottle shapes and sizes. It is an indispensable solution for enhancing production line quality in the beverage, pharmaceutical, and cosmetic packaging industries.
Technical Specifications

• Machine Dimensions (L×W×H): 5500 × 3500 × 2400 mm
• Bottle Compatibility: Max. Diameter Ø130 mm | Max. Height 280 mm
• Conveyor Speed: Electronically adjustable, up to 12 m/min
• Fixture System: 100 fixtures | Pitch: 152.4 mm
• Flame System: 12 burners | Fuel: Liquefied Petroleum Gas (LPG)
• Power Supply: AC 380V / 50Hz, 8 kW
• Air Supply: 0.6 – 0.7 MPa

Key Features & Advantages

• Consistent & Effective Pretreatment: Provides uniform flame exposure to dramatically improve surface adhesion for labels, inks, and coatings, reducing application defects.
• High-Speed, Adjustable Operation: Features an electronically adjustable conveyor (up to 12 m/min) synchronized with a precision fixture system (152.4 mm pitch) for seamless integration into fast-paced production lines.
• Robust Multi-Burner System: Equipped with 12 LPG burners for efficient, stable, and controllable flame treatment across the entire bottle surface.
• Wide Compatibility: Handles a broad range of glass bottles (up to Ø130mm x 280mm), making it highly versatile for different product lines.
• Durable & Reliable Design: Built with industrial-grade components for continuous, stable operation in demanding manufacturing environments.
• Easy Integration & Operation: Designed for straightforward setup and integration into existing packaging lines, with user-friendly controls for easy speed and process adjustment.
