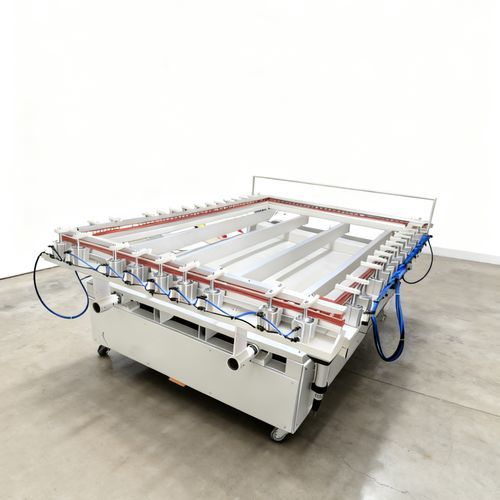

Pneumatic screen printing stretching machine Jumbo

Applications

• Widely used for high-precision, high-tension screen stretching in various industries requiring precise meshes, including:
• Solar photovoltaic industry
• Printed circuit board (PCB) industry
• Liquid crystal display (LCD) and touch panel industry
• Electronics industry
• Textile printing and dyeing
• Glass printing

General Description

• The machine is capable of producing high-quality stretched screens from polyester, nylon, and stainless steel mesh fabrics, suitable for any direct stretching application.

Features

• Intelligent Control: Utilizes a PLC microcomputer control system with smart memory and an intuitive Human-Machine Interface (HMI), ensuring accurate, stable, and efficient stretching operations.
• Robust Construction: The main body features a high-strength steel hybrid structure and employs automotive-grade tapered transmission components for durability.
• Flexible & Efficient: An open intelligent stretching memory mode accommodates different types and specifications of mesh fabric. Stretching travel parameters can be freely set and stored, with user-friendly and automated fine-tuning controls, enhancing efficiency and simplifying operation.
• Safe & Customizable: The machine incorporates multiple safety protection devices. The electrical and pneumatic circuit design is clever and rational, with low power consumption, aligning with energy-saving trends. Professional customization is available to meet specific requirements and sizes for different industries.

Technical Specifications
Parameter | Specification
Name | Automatic Screen Stretching Machine
Machine External Dimensions | 1800 × 4500 mm
Maximum Stretching Area | 1800 × 4500 mm
Tension Accuracy | ± 0.5 N
Motor Drive Method | Worm Gear Reduction (1:50 Ratio)
Mesh Clamping Method | Automatic Pneumatic Clamping
Power Supply | 380V / 50Hz
Total Power | 6 kW

Other Information

• Different size are made subject to order.

Caractéristiques / spécifications techniques

• Name: Automatic Screen Stretching Machine
• Machine External Dimensions: 1800 × 4500 mm
• Maximum Stretching Area: 1800 × 4500 mm
• Tension Accuracy: ± 0.5 N
• Motor Drive Method: Worm Gear Reduction (1:50 Ratio)
• Mesh Clamping Method: Automatic Pneumatic Clamping
• Power Supply: 380V / 50Hz
• Total Power: 6 kW
