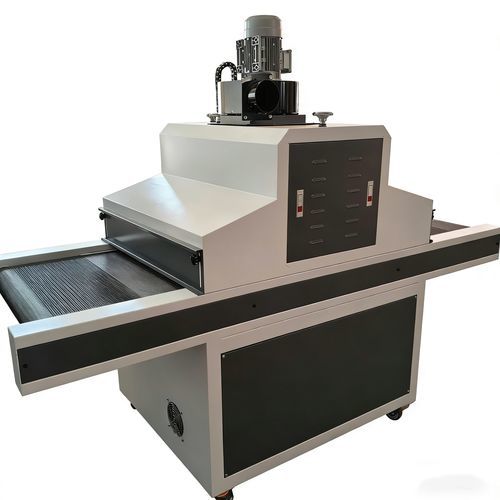

UV dryer UV6020

laboratoryfor plasticsfor printing machines

Economic UV oven UV drying machine UV dryer for flatbed paper sheet pvc sticker electronics mobile case

Detailed Specifications:

I. Equipment Name: Vertical UV Curing Machine

II. Model Number: UV6020

III. Application Scope:

This is a conveyorized UV curing unit widely used for:

Curing UV surface coatings on mobile phone casings, membrane switches, and electronic plastic shells.

Curing electronic components, liquid crystal panels (LCDs).Potting of terminalsAdhesive bonding for mobile phone assemblies and plastic components.

IV. Main Technical Parameters:

Overall Dimensions (W x H x L): 800 x 1650 x 2000 mm

Infeed Section Length: 500 mm

Outfeed Section Length: 500 mm

Mesh Belt Width: 600 mm

Mesh Belt Material: Teflon (PTFE) coated

Total Height (Product to Ground Level): 750 mm

Infeed Opening Height: Adjustable from 10 to 120 mm

Lamp Power: 3 kW per lamp (2 lamps total), with manual height adjustment

Effective Curing Width: 600 mm

Exhaust Fan Power: 750 W

Peak Wavelength: 365 nm

Lamp Startup Time: Approximately 3 minutes

Average Lamp Life: 1,000 hours (minimum guaranteed 800 hours)

Conveyor Motor: 60 W (1 unit)

Conveyor Speed: 1 - 5 m/min, steplessly adjustable

Conveyor Type: Mesh Belt

Speed Control Method: Electronic

Power Supply: 3-phase, 4-wire, 380V

Total Power Consumption: 6.75 kW

V. Performance Characteristics:

Tunnel Structure: Provides excellent light shielding, ensuring operator safety.

Focused Irradiance: Features imported magnesium-aluminum alloy reflectors, increasing efficiency by approximately 40% compared to standard UV curing machines.

Reliable Conveyance: High-temperature resistant Teflon mesh belt combined with an imported variable frequency drive motor ensures smooth and stable conveying speed.

Instantaneous Curing: Achieves hard, high-gloss, abrasion-resistant, and solvent-resistant surfaces on substrates.

Precision Exhaust System: Effectively manages temperature, minimizing the risk of deformation for heat-sensitive products.

Dedicated UV Transformers: Ensures convenient and reliable operation.
