Rotary capping machine CCI-6000Vpneumaticcontinuous-motioncrown
Add to favorites
Compare this product
Characteristics
- Type
- rotary, pneumatic, continuous-motion, crown, servo-driven, electromagnetic, electropneumatic, horizontal
- Operating mode
- automatic, fully-automatic, modular, motorized, manual, servo-driven, high-speed, electronically controlled, semi-automatic, semi-automatic
- Product applications
- for plastic screw caps, for bottles, for twist-off caps, for the food and beverage industry, for plastic containers, jar, for lid, for cosmetic products, lid, for pharmaceutical products, for small containers, for caps, for wine, for screws, for crown caps
- Application field
- for the food industry, for the beverage industry, for the pharmaceutical industry, for the chemical industry, for the wine industry, for the cosmetics industry, for the packaging industry, laboratory
- Other characteristics
- high-speed, in-line, ROPP cap
- Throughput
Max.: 3,000 p/h
Min.: 2,100 p/h
Description

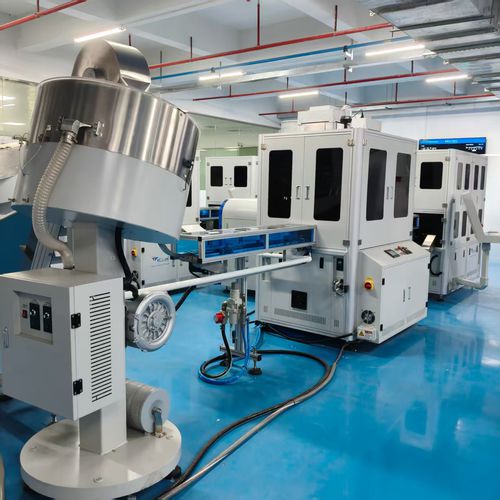

Automatic Bottle Cap Inspection Machine | Model: CCI-6000V
Overview
The CCI-6000V is a high-speed, fully automated vision inspection system engineered to deliver 100% in-line quality control for wine cap components and similar closures. By integrating multi-angle, high-resolution CCD cameras, it accurately identifies and eliminates defective products—ensuring only flawless caps proceed to final assembly, guaranteeing perfect sealing performance and end-product integrity.
Key Specifications
Detection Capabilities
Internal Defects: Missing or warped inner components, misaligned seals.
Surface Flaws: Contaminants (oil, dust), black spots, scratches, and discoloration.
Dimensional Integrity: Critical tolerances for height, outer/inner diameter, and thread profile.
Core Features
Performance Benefits
Typical Applications
Overview
The CCI-6000V is a high-speed, fully automated vision inspection system engineered to deliver 100% in-line quality control for wine cap components and similar closures. By integrating multi-angle, high-resolution CCD cameras, it accurately identifies and eliminates defective products—ensuring only flawless caps proceed to final assembly, guaranteeing perfect sealing performance and end-product integrity.
Key Specifications
- Throughput: Up to 6,000 pcs/hour (sustainable)
- Detection Accuracy: ±0.01 mm
- Vision System: 5-axis coaxial illumination with 12MP industrial cameras
- Rejection System: High-speed pneumatic kicker with dual sorting gates
- Power Supply: 220V, 50/60 Hz
- Compliance: CE & UL certified; meets ISO 22000 standards
Detection Capabilities
Internal Defects: Missing or warped inner components, misaligned seals.
Surface Flaws: Contaminants (oil, dust), black spots, scratches, and discoloration.
Dimensional Integrity: Critical tolerances for height, outer/inner diameter, and thread profile.
Core Features
- Omni-Directional Inspection: 360 surface coverage with composite imaging technology reveals both visible and hidden defects.
- Intelligent Sorting: Real-time NG tracking and a dual-verification mode minimize false rejects to below 0.01%.
- Reliable Feeding: Servo-driven vibratory bowl feeder with an anti-jam orientation system ensures consistent, uninterrupted cap flow.
- Sealing Performance Assurance: Directly contributes to perfect seal rates by preventing defective caps from entering the assembly line.
- Advanced HMI: User-friendly Delta DIAView software with real-time defect mapping and visualization.
- Self-Learning Database: Stores 200 defect patterns for continuous improvement and adaptive recognition.
- Hygienic & Durable Build: All product contact surfaces are stainless steel for easy cleaning and long-term reliability.
Performance Benefits
- Zero Defect Output: Ensures 100% qualified caps feed into high-speed assembly lines.
- Cost & Waste Reduction: Cuts material waste by up to 35% compared to manual inspection.
- Food Safety & Compliance: Ideal for applications requiring stringent hygiene and traceability.
Typical Applications
- Pre-assembly inspection of wine & spirit bottle caps
- Quality control for pharmaceutical screw caps
- Defect detection in luxury cosmetic packaging
