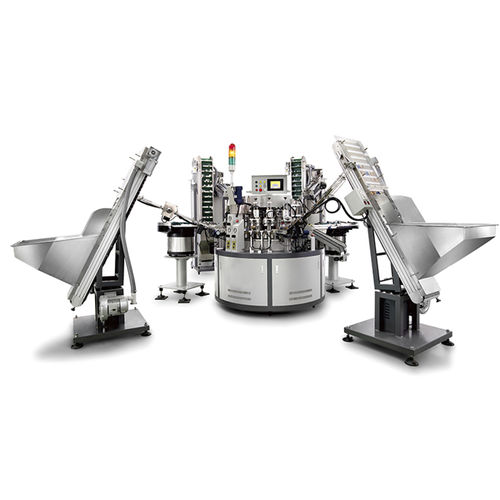

Automatic assembly machine SZZ-108

for industrial applicationssyringebottle screw closure

Automatic pneumatic metal plastic bottle cap production line cap assembly machine factory






Description
This machine is the automatic bottle capping assembly line machine developed and mass-produced by us for more than 17 years, which is mainly used for assembling various types bottle caps and some non-standard products like security cap, screwing cap, wine bottle cap, movable water cup cap, pump head, disc top, pilferproof cap etc., we can design according to different requirements to meet the assembly needs.




Tech data
| Parameter     | Specification        |
| ----------------- | ---------------------------- |
| Model        | SZZ-108           |
| Assembling speed | 4 800 – 6 000 pcs/h     |
| Cap components  | 2 – 9 pcs → 1 finished cap  |
| Cap diameter   | 15 – 34 mm          |
| Cap length     | 20 – 60 mm       |
| Power supply   | 380 VAC, 3-phase, 50 / 60 Hz |
| Air pressure    | 6 – 8 bar          |
| Power consumption | 4.5 kW      |



Features
1. Each and every part of the cap from load/offload running in fully automatic mode, labour free
2. Omron PLC control system
3. Very elegant and sturdy design guarantee the machine running at high speed perfectly.
4. Auto assembly 2-9 pcs into 1.
5. Optional gluing station, cutting station
6. Can connect with leakage testing line.
7. Final caps counting into box function, the NG cap will be automatic sorting ou and offload from the other side,
which makes the assemble job easy and efficient.
