Rotary capping machine YC-2000Spneumaticcontinuous-motionservo-driven
Add to favorites
Compare this product
Characteristics
- Type
- rotary, pneumatic, continuous-motion, servo-driven, electromagnetic, electropneumatic, horizontal
- Operating mode
- automatic, fully-automatic, motor-driven, servo-driven, stand-alone, high-speed, semi-automatic, semi-automatic
- Product applications
- for twist-off caps, for bottles, assembly line, for screws, for the food and beverage industry, jar, capsule, for pump, for plastic containers, for plastic screw caps, for cosmetic products, lid, for pharmaceutical products, for cream, for glass containers, feeder, liquids, for small containers, for wine, for medical applications, for crown caps, for caps, beverage, for lid
- Application field
- for the food industry, for the beverage industry, for the pharmaceutical industry, for the wine industry, for the cosmetics industry, for the packaging industry, laboratory
- Other characteristics
- high-speed, in-line, ROPP cap
- Throughput
Min.: 2,100 p/h
Max.: 3,000 p/h
Description

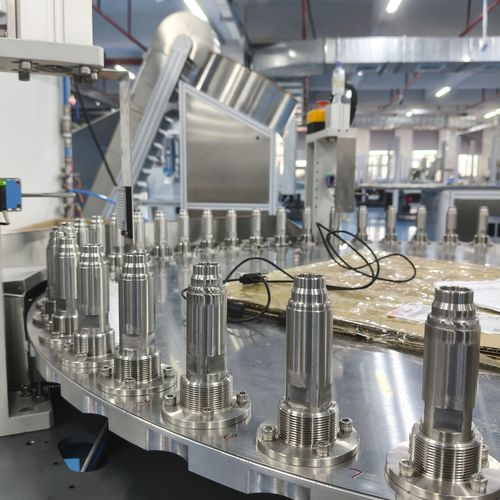

Semi-Automatic Bottle Cap Assembly Machine | Model: YC-2000S
Overview
The YC-2000S is a cost-effective, semi-automatic assembly solution designed for small to medium-batch production and prototyping. Combining the flexibility of manual feeding with automated precision operations, it is ideal for manufacturers requiring rapid changeovers, high-mix outputs, or an accessible entry into automated assembly without full-line investment.
Key Specifications
Overview
The YC-2000S is a cost-effective, semi-automatic assembly solution designed for small to medium-batch production and prototyping. Combining the flexibility of manual feeding with automated precision operations, it is ideal for manufacturers requiring rapid changeovers, high-mix outputs, or an accessible entry into automated assembly without full-line investment.
Key Specifications
- Capacity: Up to 2,000 units/hour
- Fixture Material: 304 Stainless Steel (food-grade compliant, corrosion & alcohol resistant)
- Control System: Delta HMI with pre-set recipes
- Power Supply: 220V / 50Hz (1.5 kW)
- Pneumatic Requirement: 0.5–0.7 MPa compressed air
- Net Weight: 800 kg
- Durable & Compliant Build: All contact surfaces use food-grade stainless steel, ensuring longevity and hygiene in demanding environments.
- Intuitive Operation: User-friendly Delta touchscreen allows quick setup and recipe selection, minimizing training time.
- Flexible Production Mode: Manual part loading paired with automated alignment, pressing, and assembly ensures consistency while retaining adaptability.
- Integrated Safety: Equipped with dual-circuit emergency stop protection for operator and equipment safety.
- Ready for Expansion: Compatible with optional vibratory feeders and production tracking systems for gradual automation upgrades.
- Wine & spirits screw cap assembly
- Cosmetic lid and gasket installation
- Small-batch pharmaceutical cap lining and sealing
- Increased Efficiency: Up to 40% faster than purely manual assembly, with consistent quality output.
- Quick Deployment: Pre-calibrated and ready for production within 72 hours of delivery.
- Reliable Performance: Designed for maintenance-free operation up to 3,000 hours under normal conditions.
- Bridge to Automation: An ideal stepping stone between manual processes and full-scale automated lines, reducing initial investment risk.
