Laboratory moisture balance MOC63uwith LCD displayUSBindustrial
Add to favorites
Compare this product
Characteristics
- Type
- laboratory
- Display
- with LCD display
- Communication
- USB
- Applications
- industrial
- Configuration
- benchtop
- Other characteristics
- with humidity measurement
- Weight range
Max.: 60,000 mg
(2.1 oz)Min.: 20 mg
(0 oz)- Weighing plate diameter
95 mm
(3.7 in)- Minimum weight
1 mg
(0 oz)- Operating temperature
Max.: 40 °C
(104 °F)Min.: 5 °C
(41 °F)- Width
202 mm
(7.95 in)- Depth
336 mm
(13 in)- Height
157 mm
(6 in)- Heating temperature
Max.: 200 °C
(392 °F)Min.: 50 °C
(122 °F)- Weight
4.2 kg
(9.26 lb)
Description
Product overview

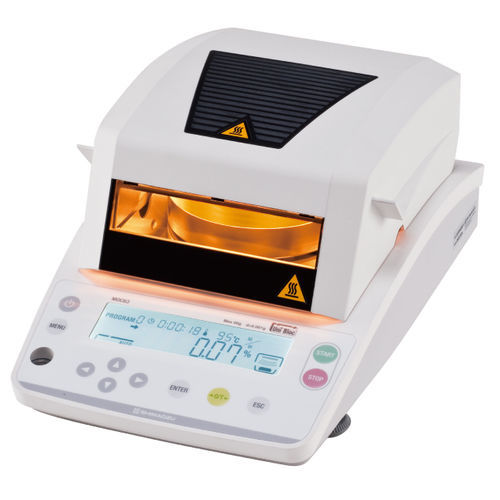

The MOC63u is a laboratory-grade moisture analyzer designed for routine quality control and material testing. It measures moisture content by heating samples with a halogen element and reporting fast, repeatable results. Operation is simple: place the sample on the pan and close the cover to start measurement.
Product line
UniBloc Moisture Analyzer
Key features
Operation
Place the sample on the weighing pan and close the cover to begin automatic measurement. The instrument adapts to various sample types common in industrial QC and laboratory workflows and supports visual monitoring through the observation window.
Videos
Product video available on the product page titled "MOC63u" (external content may require consent to play).
Downloads / Manuals (selected)
Technical specifications
The MOC63u is a laboratory-grade moisture analyzer designed for routine quality control and material testing. It measures moisture content by heating samples with a halogen element and reporting fast, repeatable results. Operation is simple: place the sample on the pan and close the cover to start measurement.
Product line
UniBloc Moisture Analyzer
Key features
- Halogen heater — Long-life, high-power halogen heater for rapid and uniform drying. Temperature adjustable from 50 °C to 200 °C. Includes a viewing window to monitor sample condition during measurement.
- Data management — Built-in USB port for data export. Measurement results can be transferred via USB cable; PC connection requires the appropriate USB driver.
- Measurement modes — Five selectable measurement modes to accommodate diverse sample types. Includes an automatic ending mode that stops the run when moisture loss over the previous 30 seconds falls below a set percentage.
Operation
Place the sample on the weighing pan and close the cover to begin automatic measurement. The instrument adapts to various sample types common in industrial QC and laboratory workflows and supports visual monitoring through the observation window.
Videos
Product video available on the product page titled "MOC63u" (external content may require consent to play).
Downloads / Manuals (selected)
- UniBloc Moisture Analyzer MOC 63u (product brochure)
- Moisture Analyzer MOC63u - Instruction Manual (PDF, multiple versions)
- MOC63u - Menu Map (PDF)
Technical specifications
- Model: MOC63u
- Product family: UniBloc Moisture Analyzer
- Heating element: Halogen heater (long-life, high power)
- Temperature range: 50 °C to 200 °C
- Operation: Place sample on pan and close cover to start measurement
- Observation: Sample viewing window for monitoring during measurement
- Data transfer: Built-in USB port standard; PC connection requires USB driver
- Measurement modes: 5 selectable modes
- Ending mode (automatic): Measurement ends when moisture loss over previous 30 s falls below specified percentage
Catalogs
MOC63u
6 Pages
