Electronic scale UP series
gwith LCD displayheavy duty

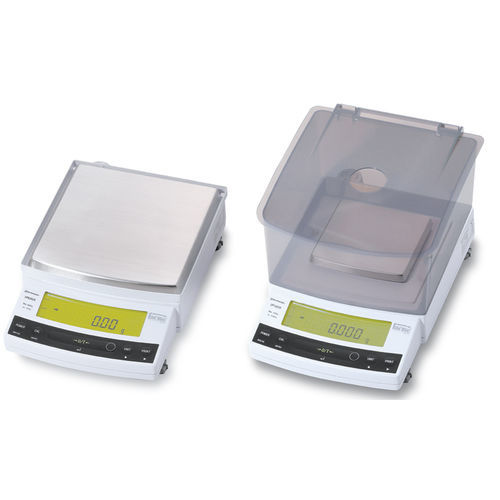

Electronic scale - UP series - Shimadzu France - g / with LCD display / heavy duty
Electronic scale - UP series - Shimadzu France - g / with LCD display / heavy duty
Electronic scale - UP series - Shimadzu France - g / with LCD display / heavy duty - image - 2
Electronic scale - UP series - Shimadzu France - g / with LCD display / heavy duty - image - 3
Add to favorites
Compare this product

Characteristics

Type
electronic
Unit of measurement
g
Display
with LCD display
Protection level
heavy duty
Weight range

Max.: 8,200 g
(289.2 oz)

Min.: 220 g
(7.8 oz)

Weighing plate length

113 mm, 176 mm
(4.4 in, 6.9 in)

Weighing plate width

110 mm, 189 mm
(4.3 in, 7.4 in)

Minimum weight

0 g
(0 oz)

Width

191 mm
(7.52 in)

Depth

317 mm
(12 in)

Height

79 mm, 82 mm
(3.1 in, 3.2 in)

Weight

2.5 kg, 2.9 kg, 3.3 kg, 4.7 kg
(5.51 lb, 6.39 lb, 7.28 lb, 10.36 lb)

Description

Overview
Top-loading balances designed for rapid response, stability and robust operation. Display response for minute quantities (from about 10× the minimum display value) is approximately 1 second, improving weighing efficiency.

Key features
  • Fast response: approx. 1 s display response for minute quantities (from ~10× minimum display value).
  • UniBloc sensor: highly impact-resistant weighing sensor to minimize downtime.
  • Optional STABLO-AP ionizer: reduces electrostatic effects for reliable measurements.
  • Integration & data collection: compatible with Balance Keys weighing data collection software and PLC systems.
  • LabSolutions Balance support: measurement data management and ER/ES compliance for regulated environments.


Images
Primary product images and additional figures illustrating features and design.

Videos
  • Top-Loading Balances UP series — electricity remover
  • Top-Loading Balances UP series — product overview
  • Top-Loading Balances UP series — powder measurement speed


Downloads (selected)
  • Shimadzu Electronic Balances General Catalog (PDF)
  • UP series — brochure (PDF)
  • Accessories for Shimadzu Balances — Optional Accessories (PDF)


Manuals
Instruction Manual UP Series — 2024-04-30
Top-loading Balance UP series — Instruction Manual — 2024-03-02
UP series balance — Quick operation guide — 2023-09-09

Notes
Series of top-loading balances designed for fast response, high stability and robustness; optional ionizer and software solutions available to support reliable data handling and regulatory compliance.

Technical specifications
  • Product type: Top-loading balances (UP Series)
  • Display response: approx. 1 s for minute quantities (from ~10× minimum display value)
  • Sensor: UniBloc (impact-resistant)
  • Optional ionizer: STABLO-AP (electrostatic elimination)
  • Software & integration: Balance Keys data collection; PLC compatibility; LabSolutions Balance for ER/ES compliance and measurement data management
  • Documents available: instruction manual, quick operation guide, brochure
