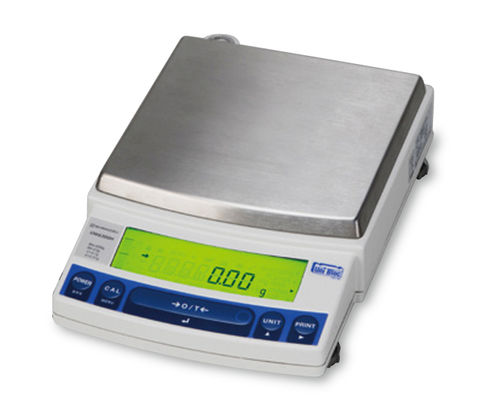

Electronic scale UW
gramsinternalwith LCD display

Electronic scale - UW - Shimadzu France - grams / internal / with LCD display
Electronic scale - UW - Shimadzu France - grams / internal / with LCD display
Electronic scale - UW - Shimadzu France - grams / internal / with LCD display - image - 2
Electronic scale - UW - Shimadzu France - grams / internal / with LCD display - image - 3
Electronic scale - UW - Shimadzu France - grams / internal / with LCD display - image - 4
Electronic scale - UW - Shimadzu France - grams / internal / with LCD display - image - 5
Electronic scale - UW - Shimadzu France - grams / internal / with LCD display - image - 6
Add to favorites
Compare this product

Characteristics

Type
electronic
Unit of measurement
grams
Calibration
internal
Display
with LCD display
Applications
for animals
Weight range

Max.: 8,200 g
(289.2 oz)

Min.: 220 g
(7.8 oz)

Weighing plate length

113 mm, 176 mm, 347 mm
(4.4 in, 6.9 in, 13.7 in)

Weighing plate width

110 mm, 189 mm, 248 mm
(4.3 in, 7.4 in, 9.8 in)

Minimum weight

0.01 g
(0 oz)

Width

191 mm, 360 mm
(7.52 in, 14.17 in)

Depth

317 mm, 366 mm
(12 in, 14 in)

Height

79 mm, 115 mm, 125 mm
(3.1 in, 4.5 in, 4.9 in)

Weight

Max.: 16,500 g
(582.02 oz)

Min.: 2,700 g
(95.24 oz)

Description

Overview
Attach an optional animal bucket to a UW/UX or BW‑K/BX‑K series balance and set the unit to animal mode to enable dedicated animal weighing functions suitable for a range of animal activity levels.

UW/UX series
Attach the optional animal bucket and switch to animal mode to convert the balance for animal weighing. Series features include UniBloc construction, internal/perfect self calibration, built‑in clock, Windows direct connection, RS‑232C interface, analog bar graph display, checkweighing, auto print, backlight and all‑metal housing.

BW-K / BX-K series
Attach the optional animal bucket and set the unit to animal mode to enable animal weighing. Series features include UniBloc construction, one‑lever calibration, calibration report capability, built‑in clock, Windows direct connection, RS‑232C interface, analog bar graph display, checkweighing and auto print.

Features
  • Three selectable movement compensation levels to match animal activity from docile to highly active.
  • Automatic weight output when the stability mark appears, reducing manual operations and increasing throughput.
  • Automatic residual subtraction: excretions and other residuals are removed on unloading so the display resets to zero and the next animal can be loaded without pressing TARE.

Technical specifications
  • Compatible series: UW/UX; BW‑K/BX‑K.
  • Accessory: optional animal bucket (attachable to listed series).
  • Operating mode: Animal mode (unit configured to animal mode when bucket attached).
  • Movement compensation: 3 selectable levels.
  • Automatic output: weight output on stability mark.
  • Residual subtraction: automatic on unload.
  • Workflow: next animal can be loaded without manual TARE to improve measurement efficiency.
  • Intended use: routine veterinary, laboratory and production animal weighing across activity levels.
