Vapor trap DS

Overview

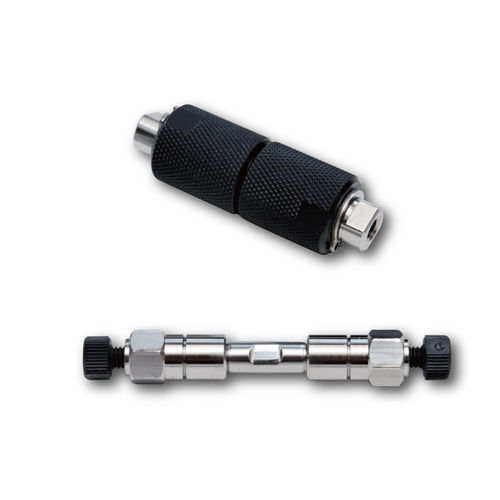

The Ghost Trap DS series, co-developed with Daiichi Sankyo Co., Ltd., is a mobile phase cleaner for HPLC designed to adsorb impurities in the mobile phase and reduce the time required for method development and impurity analysis. A high-pressure model, the Ghost Trap DS-HP, has been added to the lineup to address impurities in organic solvents for UHPLC use. The Ghost Trap DS-HP is rated to 100 MPa (1,000 bar), allowing direct use with UHPLC systems and facilitating method development on UHPLC with transfer to conventional analysis.

Notes
DS: Abbreviation of Daiichi Sankyo (D) and Shimadzu (S).

Technical Documents

• Causes and Measures for Addressing Ghost Peaks in Reversed Phase HPLC Analysis — Creation Date: 2011-10-03 — [PDF / 1.76MB]

Technical specifications

• Product type: Mobile phase cleaner for HPLC
• Function: Adsorbs impurities in the mobile phase to reduce method development and impurity analysis time
• High-pressure model: Ghost Trap DS-HP
• Pressure resistance (Ghost Trap DS-HP): 100 MPa (1,000 bar), suitable for UHPLC systems
• Intended application: Elimination of impurities from organic solvents; method development by UHPLC and transfer to conventional analysis
• Co-development: Daiichi Sankyo Co., Ltd. and Shimadzu
