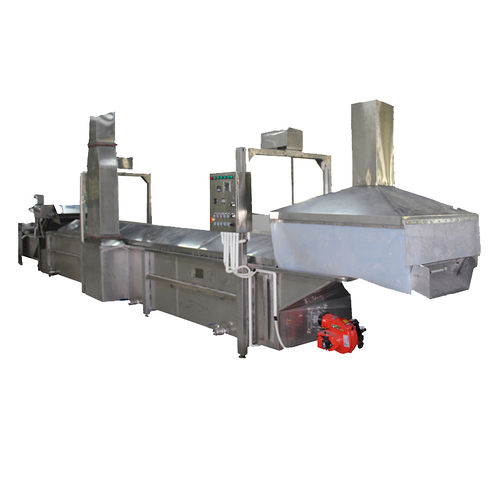

Steam industrial cooker ZD-XL 8600A

shrimpstainless steeldrum

Machine is designed to cook live shrimps. Fuel oil is turned into fuel fog through burner. And then fuel fog will be sprayed into burning aisle, which is soaked in stainless steel pool and heats the water, to make shrimps well done. Machine also can be put into cooking conches. Moreover, machine works by the engine not the diesel, to achieve the environmental effect. This equipment mainly consists of a driving device, a transmission drum, a conveyer belt, a groove type upper supporting roller, a lower supporting roller, a rack, a sweeper, a tension device, a turnabout drum, a guide chute, an electric control device, etc. During working, the transmission hobbing is driven by the speed reducer to drive the conveyer belt through gear teeth, and the effect of shrimp cooking is achieved by reaching the required water temperature via a burner. It adopts a screw tension device for tensioning the conveyer belt, wherein the screw tension device also can adjust off tracking of the belt conveyor.
