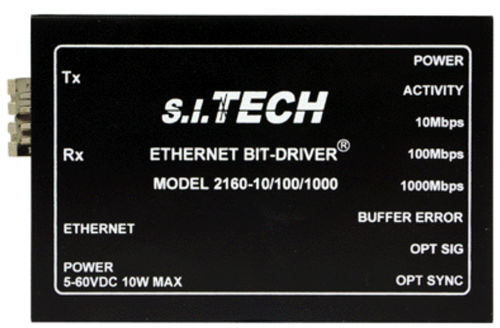

Signal converter 2160

frequencyEthernetfiber optic

Supports IEEE 802.3x 10/100/1000Base-T/1Gbps twisted pair link Meets IEEE 803.3x clock jitter and frequency variation specifications Automatic speed detection and adjustment 10/100/1000 Full duplex operation Auto MDI/MDI-X (Automatic detection of straight or crossover twisted pair cables) Automatic master/slave determination LC optical connectors standard Wide range input power: 5 to 60 VDC, 10W LED Indicators: Optical Power Detect Optical Receiver Signal Lock Ethernet Link Established 10/100/1000 Operation Activity and Collision Available with 850nm multimode or 1310nm or 1550nm single mode optics Multiple optical power configurations to support 5, 10, 20 to 80 Km fiber runs (single mode only) POE option The S.I.Tech 2160 Bit-Driver is intended to extend the length of Ethernet links to up to 80Km for long haul backbone applications. Once installed the 2160's are completely transparent to the system. Units must be installed in pairs. Network timing limitations and fiber attenuation and bandwidth may limit maximum transmission distance to less than maximum. Optical Unit Connection: Connect the optical transmission line to the T and R receptacles. Note which cable channel goes to T or R by noting cable imprint. On the other end, reverse the connections.
