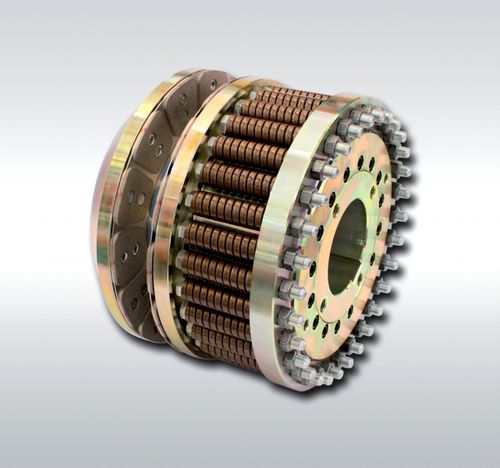

Friction torque limiter RIMOSTAT® RSHD series
Add to favorites
Compare this product
Characteristics
- Operation
- friction
- Torque
Max.: 60,000 Nm
(44,253.729 ft.lb)Min.: 300 Nm
(221.2686 ft.lb)- Diameter
Max.: 300 mm
(11.81 in)Min.: 50 mm
(1.97 in)- Rotational speed
Max.: 2,700 rpm
(16,964.6 rad.min-1)Min.: 1,000 rpm
(6,283.19 rad.min-1)
Description
Overload Clutches > Friction Torque Limiters
RIMOSTAT® Torque Limiters
for heavy-duty applications
Features
- Better stability of slipping torque than Belleville spring torque limiters over duration of the operating period
- Adjustment of slipping torque setting according to the number of active springs – not through modification of spring pressure
- Superb wear-behaviour during high energy-input
- High temperature resistant
- Nickel free friction pads
